MURPHY壓力表45APE系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌：
型號：45APE-S-100

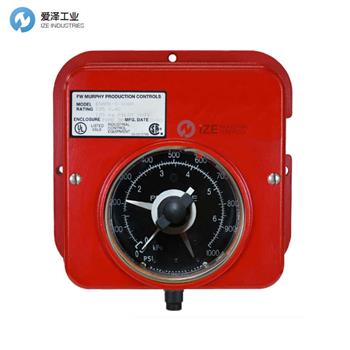

FW MURPHY壓力表45APE-S-100
預估貨期：
提交詢價
關  鍵  詞：FWMURPHYFW MURPHY壓力表45APE-S-10045APE-S-20045AP
相似產品：
是否有問題？聯系我們工作人員
  郵件聯系

FW MURPHY壓力表45APE系列技術參數

Dial:

White on black, dual scale, psi and kPa standard, 4-1/2 in. (114 mm) diameter

Case:

Die cast aluminum, surface or panel mount

Overrange:

Do not exceed 10% FS above full range

Process Connection:

1/4 NPTM thru 1000 psi; 1/2 NPTM 1,500 - 5,000 psi; back connection optional

Sensing Element:

Bronze or 316 stainless steel bourdon tube

Gage Accuracy:

Indicating pointer within switch points with hysteresis of <1%:
±2% for first and last quarters of scale;
middle half of scale is ±1%.
Indicating pointer above or below trip point:

45APE/45APEF Series Accuracy Outside Switch Points (accuracy above or below trip point)

PSI Range

Accuracy

< 100

10

100-300

4

400-1500

2

2000

12

3000-5000

8

Reading based on testing performed with switch point at mid scale which represents worst case.

Pressure Relief Disc:

Back of case (except EX models)

Switch Reset Deadband: Approximately 10% FS


Switch Point Accuracy:

±1.5%

Snap-Acting Switches:

2-SPDT; 2 A @ 250 VAC

Wire Connections (Surface Mount):

1/2 NPTF conduit entry with terminal block

Wire Connections (Panel Mount):

Wire leads, 18 AWG (1.0 mm2) x 9 in. (229 mm) long

Weight:

5 lbs 6 oz (2.4 kg) approximately

Explosion-proof models:

21 lb. (9.5 kg) approx.

Dimensions:

10 x 9 x 6 in. (254 x 229 x 152 mm) approximately

Explosion-proof models:

12 x 12 x 9 in (305 x 305 x 229 mm) approximately

CSA Certified Models:

Explosion-proof EX models with pressure range thru 5000 psig (34.4 MPa) [344 bar] are CSA approved for Hazardous locations Class I, Groups, C & D.

愛澤工業（ize-industries）并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱，商標，品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中，出現具有這些名稱，商標，品牌等信息的產品僅用于識別目的，并非旨在表明任何與持有者的從屬及授權關系。

FW MURPHY壓力表45APE系列介紹

45APE 系列表壓儀表是一種用于壓力指示的機械表壓計。它包括兩個可調 SPDT 開關。這些微動開關可用于啟動和停止、觸發警報和關閉設備。范圍從 30 psi (207 kPa) [2.06 bar] 到 5,000 psi (34.48 MPa) [344.73 bar]。



45APE 系列采用帶不銹鋼雙扇形齒輪運動的波登管傳感裝置。當對布爾登管施加壓力時，每個扇區都會驅動單獨的指針。指示指針（可見指針）顯示實際壓力讀數，包括低于和高于低和高觸發點。低和高觸發點可在量規前透鏡上獨立調節。開關操作指針（在刻度盤后面）被校準以跟隨指示指針。低和高跳閘點指示器停止開關操作指針。當壓力通過空轉原理減小或增大時，相應的速動開關將跳閘。



45APE 系列型號廣泛用于需要壓力指示和 Form C 低壓和高壓開關的應用。



? 帶獨立低速和高速微動開關的組合指示表

? 現場可調且高度可見的低壓和高壓跳變點指示器

? 雙扇形齒輪運動允許全量程指示和設定點控制

? 提供面板和表面貼裝版本

? 提供鎖存控制繼電器版本



The 45APE Series gage instrument is a mechanical gage for pressure indication. It includes two adjustable SPDT switches. These snap-acting switches can be used for start and stop, to trip alarms and to shut down equipment. Ranges are available from 30 psi (207 kPa) [2.06 bar] thru 5,000 psi (34.48 MPa) [344.73 bar].



The 45APE Series utilizes a bourdon tube sensing unit with a stainless steel dual-sector geared movement. Each of the sectors drives separate pointers when pressure is applied to the bourdon tube. The indicating pointer (visible pointer) shows actual pressure reading, including below and beyond the low and high trip points. The low and high trip points are adjustable independently on the gage front lens. The switch operator pointer (behind the dial) is calibrated to follow the indicating pointer. The low and high trip point indicators arrest the switch operator pointer. As pressure decreases or increases through the principal of lost motion, the respective snapswitch is tripped.



The 45APE Series models are widely used in applications requiring pressure indication and Form C low and high pressure switches.



? Combination Indicating Gage with Independent Low and High Snap-Acting Switches

? Field-Adjustable and Highly Visible Low and High Pressure Trip Point Indicators

? Dual-Sector Geared Movement Allows for Full-Scale Indication and Set Point Control

? Panel and Surface Mount Versions Available

? Latching Control Relay Versions Available

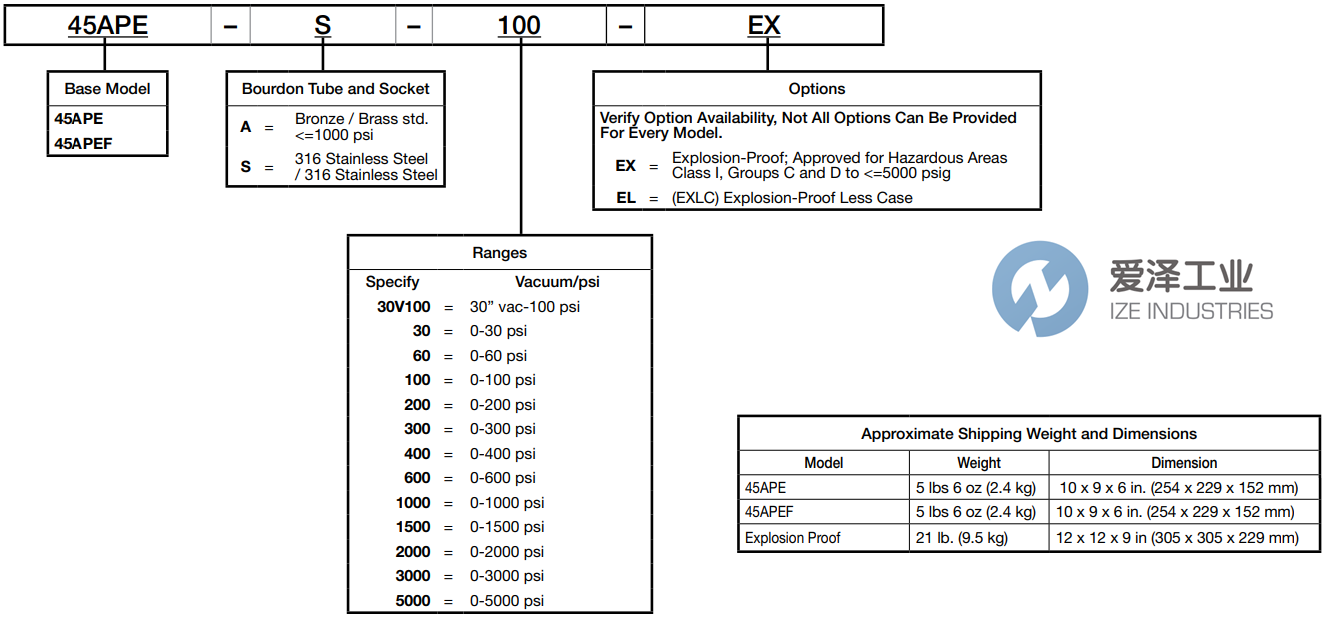

FW MURPHY壓力表45APE系列選型

FW MURPHY壓力表45APE-S-100 愛澤工業 ize-industries (2).png



FW MURPHY壓力表45APE系列其他常用型號：

FW MURPHY 45APE-S-30V100

FW MURPHY 45APE-S-100-EX

FW MURPHY 45APE-S-30

FW MURPHY 45APE-S-60

FW MURPHY 45APE-S-100

FW MURPHY 45APE-S-200

FW MURPHY 45APE-S-300

FW MURPHY 45APE-S-400

FW MURPHY 45APE-S-600

FW MURPHY 45APE-S-1000

FW MURPHY 45APE-S-1500

FW MURPHY 45APE-S-2000

FW MURPHY 45APE-S-3000

FW MURPHY 45APE-S-5000
