GF SIGNET電極2724系列選型

GF SIGNET電極2724系列介紹

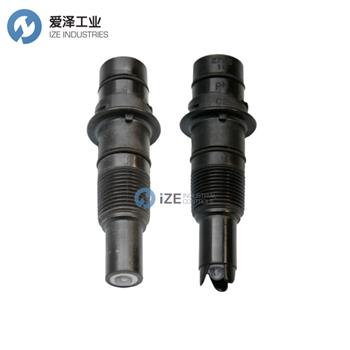

Type 2724/2726 DryLoc pH/ORP Electrodes

The Signet 2724-2726 pH and ORP Electrodes features a patented reference electrode design and uses the unique foul-proof patented DryLoc? connector. The large area PE reference junction and pathway is constructed to increase the total reference effectiveness and ensures long service life.

The DryLoc connector with corrosion resistant gold plated contacts readily connects the sensor to the mating 2760 preamplifier or the 2750 sensor electronics. The robust Ryton? threaded sensor body and choice of flat pH, bulb pH, or flat ORP sensing elements provides broad range of chemical compatibility for a wide variety of applications.

There are two optional sensing versions, HF and LC, available. The quick temperature response is available in either a PT1000 or 3 KΩ temperature sensor and allows compatibility with all Signet pH/ORP instruments. The 2724-2726 electrodes are general-purpose sensors ideal for a wide range of applications. The sensors incorporate ?” NPT or ISO 7-1 R? threads for installing into standard pipe-tees. They can also be mounted directly into Signet standard fittings.

pH/ORP:

Wetted Materials: Ryton, UHMW polyethylene, FKM, glass

Connection: Durable DryLoc? with gold plated connections

Compatible Preamp/Sensor Electronics: 2750 and 2760

Compatible Instruments: Use the 2760 preamplifier with the Signet 8750; Use the 2750 sensor electronics with the Signet 8900, 9900 or 9950 instruments

Additional Features: HF and LC options available

In-line Mounting styles:  Standard 3/4 inch or ISO threaded fittings

Submersible mounting: Available using the back of the preamplifier or sensor electronics

Applications: Water treatment, water quality monitoring, etc.

2724/2726型DryLoc pH / ORP電極

Signet 2724-2726 pH和ORP電極具有獲得專利的參比電極設計，并使用了獨特的防污專利DryLoc?連接器。大面積PE參考結和通道的構造可提高總參考效率并確保較長的使用壽命。

具有防腐蝕鍍金觸點的DryLoc連接器可將傳感器輕松連接到配對的2760前置放大器或2750傳感器電子設備。堅固的Ryton?螺紋傳感器主體以及平坦pH，球形pH或平坦ORP感應元件的選擇，為廣泛的應用提供了廣泛的化學兼容性。

有兩個可選的感應版本，HF和LC。PT1000或3KΩ溫度傳感器均可提供快速的溫度響應，并與所有Signet pH / ORP儀器兼容。2724-2726電極是通用傳感器，非常適合廣泛的應用。傳感器具有?英寸NPT或ISO 7-1R?螺紋，可安裝到標準三通中。它們也可以直接安裝在Signet標準配件中。

pH / ORP：

濕材料：Ryton，UHMW聚乙烯，FKM，玻璃

連接：耐用的DryLoc?帶鍍金連接

兼容的前置放大器/傳感器電子設備：2750和2760

兼容儀器：2760前置放大器和Signet 8750一起使用；將2750傳感器電子設備與Signet 8900、9900或9950儀器一起使用

附加功能：提供HF和LC選件

嵌入式安裝樣式：標準3/4英寸或ISO螺紋接頭

潛水安裝：可通過前置放大器或傳感器電子設備的背面使用

應用范圍：水處理，水質監測等

GF SIGNET電極2724系列其他常用型號：

GF SIGNET 3-2724-00

GF SIGNET 3-2724-01

GF SIGNET 3-2724-10

GF SIGNET 3-2724-11

GF SIGNET 3-2725-60

GF SIGNET 3-2725-61

GF SIGNET 3-2726-00

GF SIGNET 3-2726-01

GF SIGNET 3-2726-10

GF SIGNET 3-2726-11

GF SIGNET 3-2726-HF-00

GF SIGNET 3-2726-HF-01

GF SIGNET 3-2726-HF-10

GF SIGNET 3-2726-HF-11

GF SIGNET 3-2726-LC-00

GF SIGNET 3-2726-LC-01

GF SIGNET 3-2726-LC-10

GF SIGNET 3-2726-LC-11

GF SIGNET 3-2724-HF-10

GF SIGNET 3-2724-HF-11

GF SIGNET Standard Electrodes NEW + ORIGINAL+ ONE YEAR WARRANTY

愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。

如果有任何關于GF SIGNET電極3-2724-00的疑問，請隨時與我們電聯，（021-32724 6702），我們將盡全力解決您的問題。

If you have any question for GF SIGNET products, please feel free to dial 0086-21-32724 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.

GF SIGNET電極2724系列3-2724-00選型
