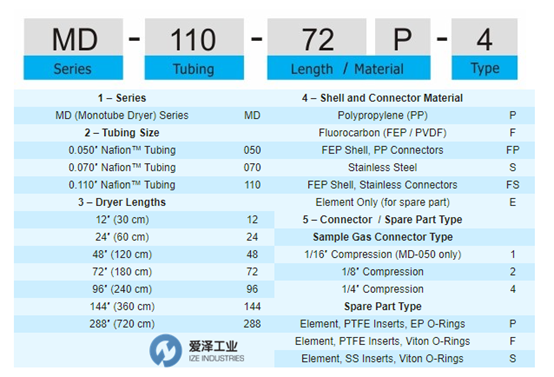

PERMA-PURE干燥管MD-110-48P-4產品參數
MD: MD (Monotube Dryer) Series |
110: 0.110″ Nafion? Tubing |
48: 48″ (120 cm) |
P: Polypropylene (PP) |
4: 1/4″ Compression |

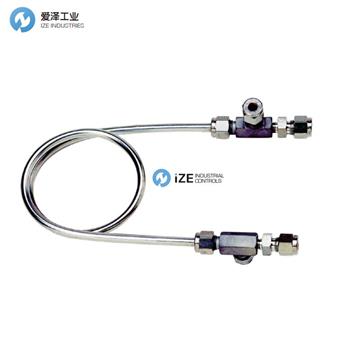

PERMA-PURE干燥管MD系列產品介紹及選型
Perma Pure MD系列氣體樣品干燥器使用獨有的Nafion選擇性滲透膜管連續干燥氣流，僅去除水蒸氣。這些干燥器可在很寬的溫度，壓力和流速范圍內運行，干燥至露點可低至-60°C。
Perma Pure MD Series gas sample dryers use exclusive Nafion selectively permeable membrane tubing to continuously dry gas streams removing only water vapor. These dryers operate over a wide range of temperatures, pressures and flow rates, and dry to dew points as low as -60°C.
特點
流量高達4 l / m
工作溫度最高 120°C
工作壓力為100 psi（絕對壓力）
直線或盤繞配置
耐腐蝕
標準露點至-25°C，特殊情況下可達-60°C（聯系工廠）
不會損失分析物
Flow rates up to 4 l/m
Operating temperatures to max. 120° C
Operating pressures to 100 psi (absolute)
Straight or coiled configuration
Corrosion resistant
Standard dew points to – 25° C, with – 60° C possible in special cases (contact factory)
No loss of analytes
工作原理
MD系列氣體干燥器將水分從一股氣流轉移到逆流吹掃氣流，就像管殼式換熱器傳遞熱量一樣。水分子透過Nafio管壁，蒸發到吹掃氣流中。兩種氣流之間的水濃度差異驅動反應，快速干燥空氣或氣體。吹掃氣體應干燥（-40°C露點）空氣或其他氣體。如果沒有干燥氣體，由MD系列干燥器干燥的一部分氣體可以分流或回流方式充當吹掃氣體。
MD-Series gas dryers transfer moisture from one gas stream to a counter-flowing purge gas stream, much like a shell-and-tube heat exchanger transfers heat. Water molecules permeate through the Nafion tube wall, evaporating into the purge gas stream. The water concentration differential between the two gas streams drives the reaction, quickly drying the air or gas. Purge gas should be dry (-40°C dew point) air or other gas. If no dry gas is available, a portion of the gas dried by the MD-Series dryer can act as the purge gas in a split-stream or reflux method.
PERMA-PURE干燥管MD系列其他常見型號：
PERMA-PURE MD-110-48P-1
PERMA-PURE MD-110-48P-2
PERMA-PURE MD-110-48P-4
PERMA-PURE MD-110-48F-1
PERMA-PURE MD-110-48F-2
PERMA-PURE MD-110-48F-4
PERMA-PURE MD-110-48FP-1
PERMA-PURE MD-110-48FP-2
PERMA-PURE MD-110-48FP-4
PERMA-PURE Temperature sensor NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于PERMA-PURE干燥管MD-110-48P-4的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for PERMA-PURE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
