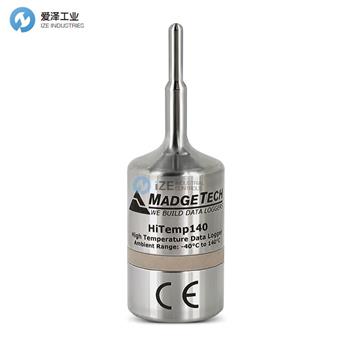

MADGETECH溫度數據記錄儀HiTemp系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:HITEMP140-2
MADGETECH數據記錄儀HITEMP140-2
預估貨期:
關  鍵  詞:MADGETECH數據記錄儀HITEMP140-2HITEMP140-1HITEMP140-
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

MADGETECH數據記錄儀HITEMP140系列技術參數

Start Modes

Software programmable immediate start
Delay start up to 18 months in advance

Stop Modes

Manual or Timed (specific date and time)

Real Time Recording

May be used with PC to monitor and record data in real time

Password Protection

An optional password may be programmed into the devic to restrict access to configuration options. Data may be read out without the password.

Memory

65,536 readings

Wrap Around

Yes

Reading Rate

1 reading every second up to 1 reading every 24 hours

Calibration

Digital calibration through software

Calibration Date

Automatically recorded within device

Battery Type

3.6V high-temperature lithium battery included; user replaceable

Battery Life

2 years typical (1 minute reading rate)

Data Format

Date and time stamped °C, K, °F or °R

Time Accuracy

±1 minute/month at 20 oC to 30 oC (68 oF to 86 oF)(Stand alone mode)

Computer Interface

IFC400 OR IFC406 USB docking station required;125,000 baud

Operating System Compatibility

Windows XP SP3 or later

Software Compatibility

Standard Software version 2.03.06 or later
Secure Software version 4.1.3.0 or later

Operating Environment

-40 oC to +140 oC (-40 oF to +284 oF)
0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA

IP Rating

IP68

Dimensions (Body)

HiTemp140-1: 1.6 in x 0.970 in dia. (40 mm x 24.6 mm dia.)
HiTemp140-2, 5.25, 7: 1.9 in x 0.970 in dia. (48 mm x 24.6 mm dia.)

Dimensions (Probe)

HiTemp140-1:
1.1 in x 0.125 in dia. (0.188 in transitional dia.)
27 mm x 3.2 mm dia. (4.8 mm transitional dia.)
HiTemp140-2:
2.0 in x 0.188 in dia. (51 mm x 4.8 mm)
HiTemp140-2-TD:
2.0 in x 0.125 in dia. (0.188 in transitional dia.)
51 mm x 3.2 mm dia. (4.8 mm transitional dia.)
HiTemp140-5.25:
5.25 in x 0.188 in dia. (133 mm x 4.8 mm dia.)
HiTemp140-5.25-TD:
5.25 in x 0.125 in dia. (0.188 in transitional dia.)
133 mm x 3.2 mm dia. (4.8 mm transitional dia.)
HiTemp140-7:
7.0 in x 0.188 in dia. (178 mm x 4.8 mm dia.)

Weight

4.2 oz (120 g)

Material

316 Stainless Steel

Approvals

CE

愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

MADGETECH數據記錄儀HITEMP140系列介紹

HiTemp140是一款堅固耐用的高精度溫度數據記錄儀,專為在惡劣環境中使用而打造。這種不銹鋼設備可浸入水中,可承受高達140 °C (284 °F)的溫度。 通過HiTemp140的標準校準,可以在很寬的溫度范圍內實現+/-0.1 °C (0.18 °F)的精度。



HiTemp140可以存儲多達65,536個讀數,并配備一個剛性外部探頭,能夠測量高達260 °C (500 °F)的擴展溫度。定制探頭長度可達7英寸。該設備記錄日期和時間戳讀數,并具有非易失性固態存儲器,即使電池放電也能保留數據。



The HiTemp140 is a rugged, high precision, temperature data logger that is built for use in harsh environments. This stainless steel device is submersible and can withstand temperatures up to 140 °C (284 °F). With the HiTemp140’s standard calibration, an accuracy of +/-0.1 °C (0.18 °F) can be achieved over a wide temperature range.



The HiTemp140 can store up to 65,536 readings, and features a rigid external probe capable of measuring extended temperatures, up to 260 °C (500 °F). Custom probe lengths are available up to 7 inches. The device records date and time stamped readings, and has non-volatile solid state memory which retains data even if the battery becomes discharged.



MADGETECH數據記錄儀HITEMP140系列其他常用型號:

MADGETECH HITEMP140-1

MADGETECH HITEMP140-2

MADGETECH HITEMP140-2-TD

MADGETECH HITEMP140-5.25

MADGETECH HITEMP140-5.25-TD

MADGETECH HITEMP140-7

MADGETECH IFC400

MADGETECH IFC406

MADGETECH ER14250MR-145



MADGETECH High Temperature Data Logger NEW + ORIGINAL+ ONE YEAR WARRANTY
