SENSITRON 異丁烷氣體探測器S系列規格描述
Technical specifications | |
Sensing element | Pellistor sensors for flammable gas Electrochemical cells for toxic gasIR sensors for HC, CO2, SF6, Refrigerant gases %LEL for flammable gases |
Measuring range | %LEL for flammable gases |
Power supply | 12-24Vdc -20% +15% |
Consumption at 12Vdc | 90mA (medium); 130mA (max) Pellistor |
Visual indications | SMART3G-C: flickering LED SMART3G-D: 3 red LED's for Alarm yellow for Fault, green for PS |
Display characteristics(SMART3G-D) | 4 digits, 7.5 mm high, 7 segments |
Proportional output | 4-20 mA (200 ?) |
Serial Output (optional) | RS 485 and proprietary protocol for addressable gas control panels |
Relay outputs, with mode status LEDs (optional) | 3 relays with tension free changeover contact 24V-1A (non-latching type) |
Accuracy | from ±2% to ±5% FS (depending on sensor type) |
Repeatability | from ±2% to ±5% FS (depending on sensor type) |
Warm-up time | 2 minutes |
Stabilization time | 60 minutes (for test/calibration) |
Response time T90 | From 15 to 30 sec. for Pellistor and <60 sec. for other sensor type |
Storage temperature | -25°C ÷ +60°C (or limits of the sensor) |
Operating temperature | -20°C ÷ +60°C (-40°C ÷+65°C or 75°C |
Relative humidity | 20-90% RH / 40°C (5-95% RH non- |
IP rating | IP65 for II 2G(D) (IP67 with: STGD/AD3 adapter and IP67 cable gland);IP55 for II3GD |
Operative pressure | 80-110 KPa |
Max. air velocity | < 6 m/s |
Weight | 850÷1200 g Ex n 950÷1700 g Ex d |
Dimension (approx) | Ex d L.130 H.180 D.90 mm (max) |
Orientation | Detector must be mounted sensor head downwards |
Certificates | CESI 17 ATEX 003X (ESR II 2G/2GD) CESI 16 ATEX 046X (Intrinsic Safety) CESI 02 ATEX 084 (Performance) IECEx CES 17.0011X & 17.0010X |
EMC Reference Standards | EN 50270, EN 61000-6-4 |
SENSITRON異丁烷氣體探測器S系列產品介紹
S2097IB SMART3G氣體檢測儀用于在分類區域中檢測異丁烷，2-甲基丙烷，異丁烷，三甲基甲烷，1,1-二甲基乙烷，R600a和綠凍結氣體化合物（％LEL）。
用于可燃氣體檢測的Pellistor傳感器顯示出高達100％LEL的出色輸出線性度。
SMART3G系列產品的設計旨在提供多種選擇，從而為客戶提供最佳的解決方案。
SMART3G-C專為提供工業應用的高性能產品而設計。
SMART3G探測器通過ATEX認證，適用于：
II組2G，2GD，3G和GD
SMART3G探測器通過SIL2 HW TUV認證
特點與優勢
-易于更換傳感器
-多種傳感器和可檢測氣體
-標準4-20 mA 3線輸出
-多種附件用于安裝和維護
-零跟蹤和系統自我診斷
-ATEX認證的I＆II組
S2097IB SMART3G gas detectors are employed to detect Isobutane, 2-methylpropane, i-butane, trimethylmethane, 1,1-dimethylethane, R600a, Greenfreeze Gas compounds (%LEL) in classified areas.
The Pellistor sensors employed for the flammable Gas detection show an excellent output linearity up to 100% LEL.
The SMART3G line has been designed to offer a wide range of alternatives that grant customers the best solution to their requirements.
SMART3G-C has been specifically designed to offer high performance products for industrial applications.
SMART3G detectors are ATEX certified for:
Group II 2G, 2GD, 3G & GD
SMART3G detectors are SIL2 HW TUV certified
FEATURES & BENEFITS
- Easy sensor replacement
- Wide range of sensors and detectable gases
- Standard 4-20 mA 3 wires output
- Wide range of accessories for installation and maintenance
- Zero tracking and system self diagnosis
- ATEX certified Group I & II

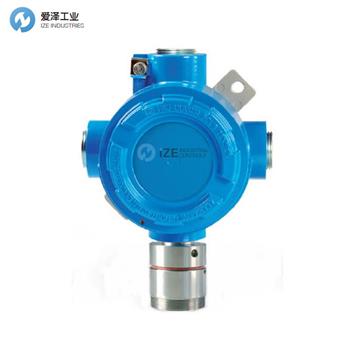

SENSITRON 異丁烷氣體探測器S2097IB
愛澤工業(IZE INDUSTRIES)特價經銷、常用備件SENSITRON 異丁烷氣體探測器部分型號：
SENSITRON S2156ME
SENSITRON S2157ME
SENSITRON S2625ME
SENSITRON S2626ME
SENSITRON S2096ME
SENSITRON S2097ME
SENSITRON S2623ME
SENSITRON S2624ME
SENSITRON S2156GP
SENSITRON S2157GP
SENSITRON S2096GP
SENSITRON S2097GP
SENSITRON S2157AA
SENSITRON S2097AA
SENSITRON S2157AT
SENSITRON S2602AT
SENSITRON S2097AT
SENSITRON S2654AT
SENSITRON S2156PR
SENSITRON S2157PR
SENSITRON S2601PR
SENSITRON S2602PR
SENSITRON S2096PR
SENSITRON S2097PR
SENSITRON S2653PR
SENSITRON S2654PR
SENSITRON S2157PP
SENSITRON S2602PP
SENSITRON S2097PP
SENSITRON S2654PP
SENSITRON S2157ST
SENSITRON S2155ST
SENSITRON 2157TM
SENSITRON S2097TM
SENSITRON S2157TO
SENSITRON S2097TO
SENSITRON S2157AV
SENSITRON S2155AV
SENSITRON S2157XI
SENSITRON S2097XI
SENSITRON S2642O2
SENSITRON S2643O2
SENSITRON S2640O2
SENSITRON S2641O2
SENSITRON S2162CO
SENSITRON S2163CO
SENSITRON S2130CO
SENSITRON S2131CO
SENSITRON S3226AM
SENSITRON S3227AM
SENSITRON S3224AM
SENSITRON S3225AM
SENSITRON S2164AM
SENSITRON 2165AM
SENSITRON S2132AM
SENSITRON S2133AM
SENSITRON S2166AM
SENSITRON S2167AM
SENSITRON S2134AM
SENSITRON S2135AM
SENSITRON S2631CO2
SENSITRON S2634CO2
SENSITRON S2649CO2
SENSITRON S2651CO2
SENSITRON S2632CO2
SENSITRON S2635CO2
SENSITRON S2650CO2
SENSITRON S2652CO2
SENSITRON S2447CO2
SENSITRON S2449CO2
SENSITRON S2443CO2
SENSITRON S2445CO2
SENSITRON S2448CO2
SENSITRON S2444CO2
SENSITRON S3594H2
SENSITRON S3313H2
SENSITRON S3592H2
SENSITRON S3593H2
SENSITRON S2168HS
SENSITRON S2169HS
SENSITRON S2136HS
SENSITRON S2137HS
SENSITRON S2176NO
SENSITRON S2177NO
SENSITRON S2144NO
SENSITRON S2145NO
SENSITRON S3597R134A
SENSITRON S3163R134A
SENSITRON S3595R134A
SENSITRON S3596R134A
SENSITRON S3600SF6
SENSITRON S3601SF6
SENSITRON S3598SF6
SENSITRON S3599SF6
SENSITRON Gas Detectors NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SENSITRON異丁烷氣體探測器S2097IB的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SENSITRON products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
