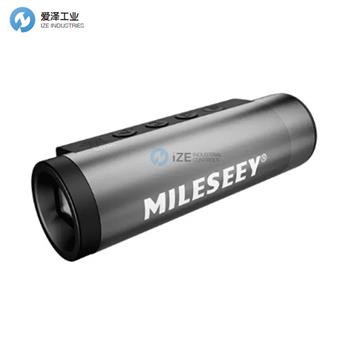

MILESEEY望遠鏡THERMOGRAPHY CMERA TNV10產品介紹
Technical parameter | |
Infrared Resolution | 384x288 |
Pixel Size | 17μm |
NETD | < 40mk |
Lens Focal Length | 25mm(F1.0) |
Field of view | 14.9°x 11.2° |
Display | 800x600, OL .ED Screen |
Detection Range | 400m |
Electronic Zoom | 1X, 2X, 4X, 8X |
Photograph | 800*600, BMP Format |
Imaging Mode | Red Heat, Black Heat, White Heat, Green Heat, lron Red |
Diopter Adjustment | Support |
Hot Spot Tracking | Support |
Laser Ranging | Compatible |
Operating Temperature | -20°C~60°C |
Waterproof | IP65 |
Battery | 4500mAh Li Battery |
Charging/Data nterface | Type-C |
Output | Support Mini HDMI、Micro SD (Maximum Expansion 32GB) |
Size | 178.5x51x47mm |
MILESEEY望遠鏡THERMOGRAPHY CMERA TNV10描述說明
TNV10 熱成像單筒望遠鏡
256*192 紅外分辨率
500碼卓越的探測范圍
16小時持久續航時間
IP65 防水防濺
5°*11°寬視野
4倍平滑數字變焦
不僅僅用于發現目標,更適用于清晰識別
TNV10 配備了釩氧化物 256192 紅外探測器和清晰的 720576 LCOS 顯示屏,提供令人驚嘆的圖像質量和生動細節,使用戶能夠輕松識別目標是野豬還是母豬。
從500碼外發現目標
配備強大的紅外探測器和高光圈長焦鍺鏡頭,TNV10 可輕松在500碼范圍內捕捉熱信號,更好地識別各種動物。
尖端光學技術
11mm F1.0 鍺鏡頭,具有14.5°*11°超廣視野,使用戶能夠捕捉更多目標周?chē)男畔?,提供更多背景或環境信息。
為你的探險隨時提供電力
4500mAh 鋰離子電池組,帶有30分鐘自動斷電功能,提供長達15小時的電池續航,讓用戶放心探索,擁有充足的電力支持。
聚焦細節
TNV10 配備平滑的4倍數字變焦,使用戶即便在660碼的漆黑環境下也能放大圖像,輕松識別目標,而不需靠近目標。
通過擴展模塊解鎖更多功能
TNV10 支持連接擴展激光測距模塊用于高精度激光距離測量,或連接4K顯示器以獲得更清晰和舒適的高級觀看體驗。
*激光測距模塊和4K顯示器單獨出售。
TNV10 Thermal Monocular
256*192 IR Resolution
500-Yard Impressive Detection Range
16-Hour Long-Lasting Battery Life
IP65 Water & Splash Resistant
5°*11°Wide Field of View
4X Smooth Digital Zoom
Built Not Simply for Spotting, but Clear Identification
Featuring a vanadium oxide 256*192 infrared detector and a pristine 720*576 LCOS display, TNV10 offers stunning image quality with vivid details, allowing users to easily identify whether you are targeting a boar or a lead sow.
Discover Target from 500 Yards Away
Equipped with a powerful infrared detector and a high-aperture, long-focal Germanium lens, TNV10 easily captures heat signature up to 500 yard away with better identification on various animals.
State-of-the-Art Optics
11mm F1.0 Germanium lens with 14.5°*11° ultra-wide field of view allows users to capture more around the target, providing more information and knowledge of the background or environment.
Always Be Powered-up for All Your Adventures
4,500mAh Li-ion battery pack with 30-minute auto power-off offers an impressive battery life of up to 15 hours, giving users a peace of mind knowing that they always have abundant power to explore the wilderness.
Zoom in on the Details
TNV10 features a smooth 4X digital zoom that allows users to enlarge the picture to easily identify the target within 660 yards in pitch darkness when they cannot physically move in closer to the target.
Unlock More with Extended Modules
TNV10 supports connection to an extended laser rangefinder module for high-precision laser distance measuring or a 4K monitor for premium viewing experience with enhanced clarity and higher comfort.
*Laser rangefinder module and 4K monitor are sold separately.
