MAURER特斯拉計M-TestLL技術參數
Unit of measurement (switchable) | A/cm | Gauss | mT |
Measuring range magnetic constant field | +/– 160 A/cm | +/– 200 Gauss | +/– 20 mT |
resolution | 0.1 A/cm | 0.1 Gauss | 0.01 mT |
Response threshold LED | approx. +/– 1.7 A/cm | approx. +/– 2.1 Gauss | approx. +/– 0.21 mT |
Analog output | +/– 1.4V at range maximum | ||
Measurement uncertainty in homogeneous magnetic fields | across the entire measuring range 1.5%, +/– 1 digit | ||
Frequency range in alternating field | approx. 15 Hz to approx. 5 kHz | ||
Sensor type probe M-Test LLP 0.5 | transversely installed Hall sensor, temperature compensated, no drift, wear-resistant | ||
Measuring distance | 0.5 mm distance from Hall measuring element to probe surface | ||
Polarity indicator LED | red = north pole, green = south pole, orange = measuring range exceeded or alternating field | ||
Automatic device shutdown | approx. 15 min in battery mode | ||
Battery type / charging time | Lithium polymer battery, 2 cells / approx. 6 – 7h charging time | ||
Operating time | approx. 7 hours | ||
probe cable | Oil-resistant spiral cable, stretched 2m | ||
Weight (probe and measuring device) / Shipping | 500g / 1000g | ||

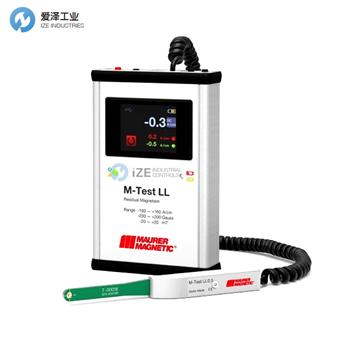

MAURER特斯拉計M-TestLL產品介紹
M-Test LL 專為可靠檢測和簡單、可重復的剩磁測量而開發。得益于探頭尖端的快速響應 LED，即使是部件上的細磁極磁場也能被可靠地檢測和定位。此外，與報告相關的南北極最大值也會自動保存并顯示。M-Test LL 磁力儀憑借其高品質和堅固的設計，在現場和實驗室中用途廣泛，并廣泛應用于汽車工業、工業生產、機械工程和其他領域。
The M-Test LL has been developed for reliable detection and simple, reproducible remanent magnetization measurements. Thanks to the fast-response LED at the probe tip, even fine magnetic pole fields on the component can be reliably detected and located. In addition, the maximum values of the north and south poles are automatically saved and displayed for reporting purposes. The M-Test LL magnetometer is extremely versatile in the field and in the laboratory due to its high quality and robust design and is used in the automotive industry, industrial production, mechanical engineering and other areas.
MAURER特斯拉計其他常用型號：
MAURER M-TestLL 95T-00001
MAURER M-Test LLP 0,5 95T-00018-C
MAURER M-Test MK4
MAURER Measuring instrument NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MAURER特斯拉計M-TestLL 95T-00001的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MAURER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
