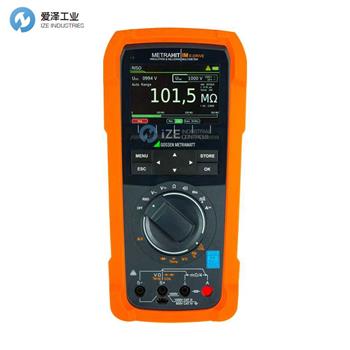

GMC數字萬用表M274S技術參數

技術特性

絕緣電阻測量高達 3.1 GΩ，具有干擾電壓檢測功能，測試電壓：50、100、250、500 和 1000 V，符合 EN 61557-2 / VDE 0413-2 標準

DAR：PI：

4 線毫歐姆測量，采用開爾文連接和 200 mA 或 1 A 測量電流，可精確測量小電阻，分辨率為 1

2 線測量，測試電流為 200 mA，符合 EN 61557-4 / VDE 0413-4 標準

短路線圈測量

多功能儀器

TRMS AC / AC+DC 測量電流/電壓高達 10/100 kHz

AC、AC+DC 低通濾波器

直流電流測量

使用鉗形傳感器進行電流測量：變壓比可通過 CLIP 從 1:1 調整到 1:1000，并計入安培數顯示。

電容測量

精密溫度測量 – RTD 和 TC-K 傳感器的 °C、°F

二極管測量（Kflow 高達 5.1 V）和連續性測試

聲音信號

獲取最小值/最大值。值，數據保持

數據記錄器得益于集成的內存模塊和實時時鐘，也可用于單個測量

推送/打印功能只需按下一個鍵即可將測量值傳輸?shù)綉?yīng)用軟件

可編程的測試程序序列

適用于 Android 操作系統的 METRALOG APP

彩色圖形顯示屏

模塊化電源：標準快速更換可充電鋰電池和帶 USB 端口的可選電源模塊，由于獲得專利的觸摸保護模塊插座，無需中斷測量電路即可進行更換

用于電流輸入的自動阻塞插座 (ABS)

帶有 START (ISO) 和 STORE 鍵的測試探頭

外殼防護等級為 IP 52，防塵防濺，可更換橡膠皮套

集成藍牙，帶可選電源模塊的 USB

IZYTRONIQ Windows 軟件用于記錄、準備測試報告和圖形評估測量結果

Technical characteristics

Insulation resistance measurement up to 3.1 GΩ with interference voltage detection, test voltages: 50, 100, 250, 500 and 1000 V per EN 61557-2 / VDE 0413-2

DAR: PI:

4-wire milliohm measurement with Kelvin connection and 200 mA or 1 A measuring current for precise measurement of extremely small resistances with a resolution of 1

2-wire Rlow measurement with 200 mA test current per EN 61557-4 / VDE 0413-4

Short-circuited coil measurement

Multifunctional instrument

TRMS AC / AC+DC measurement for current/voltage up to 10/100 kHz

AC, AC+DC low-pass filter

Direct current measurement

Current measurement with clamp sensors: The transformation ratio can be adjusted with the CLIP from 1:1 to 1:1000 and is taken into account in the amperage display.

Capacitance measurement

Precision temperature measurement – °C, °F for RTD and TC-K sensors

Diode measurement (Kflow up to 5.1 V) and continuity testing

Acoustic signals

Acquisition of min./max. values, DATA Hold

Data logger thanks to integrated memory module and real-time clock, for individual measurements as well

The push/print function transfers measured values to application software by simply pressing a key

Programmable sequences for test routines

METRALOG APP for Android OS

Color graphic display

Modular power supply: standard quick-change rechargeable lithium battery and optional mains module with USB port, change without interrupting the measuring circuit thanks to patented touch-protected module socket

Automatic blocking sockets (ABS) for the current input

Test probe with START (ISO) and STORE keys

Housing with IP 52 protection, dust and splash protected, replaceable rubber holster

Bluetooth integrated, USB with optional mains module

IZYTRONIQ Windows software for documentation, preparation of test reports and graphic evaluation of measurements
