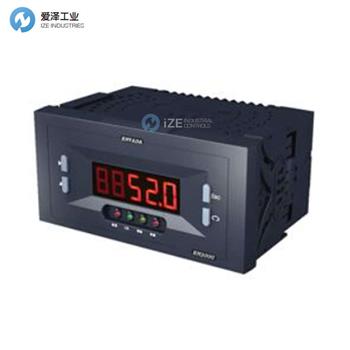

ENVADA智能轉速表EN2000A3系列技術參數
Technical Parameters | |
Speed measurement range: | 0~99999 rpm |
Alarm set point: | 0 ~ 100% FS |
Alarm delay: | 0~9 seconds optional |
Gear plate setting value: | 1~255 optional |
Transmitting range set point: | 0~100% FS |
Relay contact capacity: | 250 VAC/1A 30VDC/2A |
Working power supply: | 85~265VAC/50~60Hz or 24VDC |
Power Consumption: | <10W |
Dimensions: | 160mm (width) × 80mm (height) × 120mm (depth) |
ENVADA智能轉速表EN2000A3系列介紹
旋轉機械如汽輪機、送引風機、給水泵等在高速運轉情況下,轉速必須盡量保持穩定,一旦超速,可能會導致汽輪機或其它大型旋轉機械設備損壞。把智能超速保護儀應用在電力、石化、冶金等行業的旋轉機械設備,如汽輪機、送引風機、給水泵等上,可對其轉速進行在線監測及投保護。EN2000A3智能轉速表功能強大,應用范圍廣,性價比極高??杉嫒轀y量電渦流、磁阻、交直流脈沖、干節點等各種信號,接收一路傳感器信號,可以提供完善的、高質量轉速在線監測。
產品功能
自診斷:對傳感器可進行連續地自診斷
選配傳感器:可應用戶要求選配磁阻、渦流等各種類型傳感器
先進測量法:采用脈沖周期法測量
豐富的功能:在傳統儀器的基礎上增加了系統故障識別、判斷、控制功能,有效避免了非真實情況誤動作,可對不同齒數的齒盤、鍵、槽進行轉速監控。
可靠數據庫:“黑匣子”數據庫可以追憶歷史最大值,為分析提供最可靠的第一手資料
高精度電流接口:能提供0~10mA、0~20mA、4~20mA電路信號輸出,精度0.2% FS
通訊:RS232、RS485串行通訊,可實現現場數據與計算機進行遠程互聯網通訊
When rotating machinery such as steam turbines, supply and induced draft fans, water supply pumps, etc. operate at high speed, the speed must be kept as stable as possible. Once the speed is exceeded, damage to the steam turbine or other large rotating machinery may occur. The intelligent overspeed protection device is applied to rotating machinery and equipment in electric power, petrochemical, metallurgy and other industries, such as steam turbines, supply and induced draft fans, water supply pumps, etc., and its speed can be monitored online and protected. EN2000A3 smart tachometer has powerful functions, wide range of applications and extremely cost-effective performance. It is compatible with measuring various signals such as eddy current, magnetoresistance, AC and DC pulses, and dry nodes. It receives a sensor signal and can provide complete and high-quality online speed monitoring.
Product Features
Self-diagnosis: The sensor can be continuously self-diagnosed
Optional sensors: Various types of sensors such as magnetoresistive and eddy current can be selected according to user requirements
Advanced measurement method: using advanced pulse period method for measurement
Rich functions: On the basis of traditional instruments, it adds system fault identification, judgment, and control functions, which effectively avoids false operations in unreal situations. It can monitor the speed of toothed discs, keys, and grooves with different numbers of teeth.
Reliable database: The "black box" database can recall historical maximum values and provide the most reliable first-hand information for analysis
High-precision current interface: can provide 0~10mA, 0~20mA, 4~20mA circuit signal output, with an accuracy of 0.2% FS
Communication: RS232, RS485 serial communication, which can realize remote Internet communication between on-site data and computer
ENVADA智能轉速表EN2000A3系列其他常用型號:
ENVADA EN2000A3-1-0-0
ENVADA TACHOMETER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ENVADA智能轉速表EN2000A3-1-0-0的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for ENVADA products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
