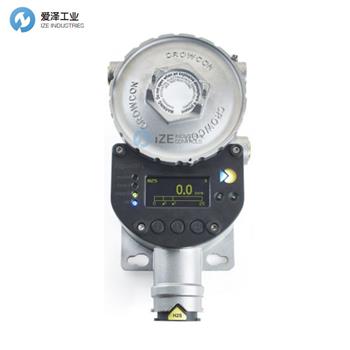

CROWCON氣體探測器XgardIQ系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:XIQ-II-S1-011-H-R-A
CROWCON探測器XIQ-II-S1-011-H-R-A
預估貨期:
關  鍵  詞:CROWCONCROWCON探測器XIQ-II-S1-011-H-R-AXIQ-AA-S1-0
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

CROWCON探測器XgardIQ系列技術參數

Specifications


Size

H278 x W140 x D89mm (10.9 x 5.5 x 3.5 in)

Weight

4.1Kg (9lbs)

Enclosure material

316 stainless steel

Ingress protection

IP66

Connection

Three M20 or ?”NPT cable gland entries.Certified, removable plugs are fitted to left-hand and lower righthand entries

Power

14-30 VDC. <4W

Display

Main display – OLED 128 x 64 pixels, yellow text on black background
Indicators – Amber, Red and Green LED’s for detector status; Blue +ve Safety LED

Electrical output

4-20mA current sink or source (Auto-Sense or manual selection); warning and fault signals are configurable. NAMUR NE 43 compliant
RS-485 Modbus RTU
HART 7 over 4-20mA signal and via local I.S. test points (optional)
Relays (optional)
Alarm 1, Alarm 2, Fault
SPCO contacts rated 5A, 230Vac
Relay configuration options
Energised or de-energised
Latching or non-latching
Rising or falling
Configurable On and Off delays on alarm relays.

Event logging

Records alarm, fault and maintenance events. Events can be viewed on-screen and downloaded to a PC.

Operating temperature

Transmitter only: -40°C to +75°C (-40°F to +167°F)?
Sensor type:
Oxygen: (-20°C to +50°C ambient)
Toxic: (-40°C to +50°C ambient)
Pellister: (-40°C to +75°C ambient)
Infra-red (IR): (-20°C to +55°C ambient)
High temperature toxic:  (-40?C to +70?C)

Humidity

0 to 95% RH non-condensing?

Repeatability

+/- 2% FSD

Zero drift

+/- 2% FSD per year maximum

Response time

Sensor dependant: contact Crowcon for specific sensor data.

Approvals

ATEX and IECEx:
Ex II 2 G    Ex db ia IIC T4 Gb (see above for temperature ranges)

Performance

Designed for compliance with:
EN50104 (oxygen sensors)
EN45544 (toxic gas sensors)*
EN50271 (software)
H2S performance standard

Functional safety

IEC61508, EN50402 SIL 2

EMC Compliance

EN50270:2015
FCC CFR47 Part 15B
ICES-003

愛澤工業(ize-industries)并不是本網站所列所有產品的授權代理商或經銷商。 本網站使用的所有產品名稱,商標,品牌等均屬于各自品牌廠家所有。 本網站在產品或圖片描述中,出現具有這些名稱,商標,品牌等信息的產品僅用于識別目的,并非旨在表明任何與持有者的從屬及授權關系。

CROWCON探測器XgardIQ系列介紹

Overview

XgardIQ is an intelligent and versatile fixed detector and transmitter compatible with Crowcon’s full range of sensor technologies. Available fitted with a variety of sensors for fixed flammable, toxic, oxygen or H2S gas detection.



Providing analogue 4-20mA and RS-485 Modbus signals as standard, XgardIQ is optionally available with Alarm and Fault relays and HART communications. The 316 stainless steel are available with three M20 or 1/2“NPT cable entries.



(SIL-2) Safety integrity level 2 certified fixed detector.



Easy and safe to use

OLED Display – Bright, clear display indicates gas level and detector status even in dark locations

Non-Intrusive Calibration – Zero and calibration functions are performed via the display and keypad, without the need for a hot-work permit or any special tools (e.g. no magnetic wand required)

+Ve Safety Indicator – Confirms the detector is operating safely at a glance

Event Log Function – Stores all alarm, fault and maintenance events to provide a history of detector use

Remote Sensor – Improves probability of detection

Simple installation and maintenance

Universal Transmitter – Common transmitter for Crowcon’s full range of sensor technologies

Hot-Swap Sensor Modules – Sensors can easily be replaced using one hand without requiring tools or a hot-work permit

Auto-Sense Function – Automatically detects whether the control system is 4-20mA current sink or source and sets itself appropriately, eliminating the risk of being incorrectly set

Auto-Configure Function – Detects when a sensor module is plugged-in and uploads the appropriate gas type, range, units and alarm levels

Reliability

Smart Bump And Speedy Bump Test Functions – Enable sensor health and response to be verified quickly and easily using test gas. Process is automated and provides a reminder when a bump test is due

Calibration Due Warning – Reminds the user when calibration is due to ensure that sensors remain operational and accurate at all times

Sensor Range Selection – User can set the full-scale range of the sensor via the display menu according to site or specific location requirements.



概述

XgardIQ 是一款智能、多功能的固定探測器和發射器,與 Crowcon 的全系列傳感器技術兼容。 可配備各種傳感器,用于固定可燃、有毒、氧氣或硫化氫氣體檢測。



XgardIQ 提供模擬 4-20mA 和 RS-485 Modbus 信號作為標準,還可以選擇配備報警和故障繼電器以及 HART 通信。 316 不銹鋼可配備三個 M20 或 1/2“NPT 電纜入口。



(SIL-2) 安全完整性級別 2 認證的固定探測器。



使用方便且安全

OLED 顯示屏 – 即使在黑暗的地方,明亮、清晰的顯示屏也能顯示氣體水平和檢測器狀態

非侵入式校準 – 調零和校準功能通過顯示屏和鍵盤執行,無需動火作業許可證或任何特殊工具(例如不需要磁棒)

+Ve 安全指示燈 – 一目了然地確認檢測器是否安全運行

事件日志功能——存儲所有警報、故障和維護事件,以提供探測器使用歷史記錄

遠程傳感器——提高檢測概率

安裝和維護簡單

通用發射器——適用于 Crowcon 全系列傳感器技術的通用發射器

熱插拔傳感器模塊 – 可以用一只手輕松更換傳感器,無需工具或動火作業許可證

自動檢測功能 – 自動檢測控制系統是 4-20mA 電流吸收器還是源電流并進行適當設置,消除了錯誤設置的風險

自動配置功能 – 檢測傳感器模塊何時插入并上傳適當?shù)臍怏w類型、范圍、單位和報警級別

可靠性

智能沖擊和快速沖擊測試功能 – 使用測試氣體快速、輕松地驗證傳感器的健康狀況和響應。 過程是自動化的,并在碰撞測試到期時提供提醒

校準到期警告 - 提醒用戶何時需要校準,以確保傳感器始終保持運行和準確

傳感器量程選擇 – 用戶可以根據現場或特定位置的要求,通過顯示菜單設置傳感器的滿量程范圍。
