AIM TTI測量單元SMU4000系列技術參數
TECHNICAL SPECIFICATIONS | |
KEY SPECIFICATIONS OF SMU4000 SERIES | |
Maximum Voltage | ±21V ( SMU4001), ±210V (SMU4201) |
Voltage ranges | 20mV to 20V ( SMU4001), 20mV to 200V (SMU4201) |
REMOTE CONTROL INTERFACES | |
LAN | Ethernet 100/10 base-T hardware connection. |
LXI Conformance | 1.5 LXI Device Specification 2016. |
USB | Standard USB 2.0 hardware connection. Operates as a virtual COM port. |
GPIB (optional) | Conforming with IEEE488.1 and IEEE488.2 |
Remote Command Processing Time | Typically < 5ms between receiving the command terminator for an output change at the instrument and the output beginning to change. |
SYSTEM SPEEDS | |
Measure to Memory | Up to 5k/s sustained. |
ENVIRONMENTAL | |
Operating Range | +5°C to +40°C, 20% to 80% RH non-condensing. |
Operating Mains | 220V-240V or 110V-120V AC ±10%, 50/60Hz, by internal selection; |
Environmental | Indoor use at altitudes up to 2000m, Pollution Degree 2. |
Storage Range | -20°C to +60°C, 10% to 90% RH non-condensing. |
EMC | EN61326-1 and EN61326-2-1, group 1, class A. |
Safety | EN61010-1 and EN61010-2-030 (uncategorized measurements). |
Security | Kensington security slot incorporated. |
MECHANICAL | |
Size (nominal) | Bench Use: 250mm(W) x 97mm(H) x 295mm(D) |
Weight (nominal) | 4.25kg |
AIM TTI測量單元SMU4000系列介紹
SMU4000 系列是一款四象限 SMU,價格實惠,性能強。觸摸屏技術與直觀的圖形用戶界面相結合,使測試和測量過程流程清晰自然。在緊湊的半機架 2U 外殼中集成了快速、靈活、高功率的四象限電壓/電流源和先進的精密電壓/電流表,能夠精確地提供正負電壓、拉電或吸電,同時測量電流和電壓以進行 I-V 特性分析。高電流和功率與快速測量和低毛刺自動測距速度相結合,是工業開發和教育環境的理想解決方案,SMU 被視為簡化電池充電/放電、I-V 特性分析、半導體測試等測試應用的一體化解決方案。
? 四象限電源、吸電和測量
? 0.015% 基本精度,6? 位分辨率。
? 感測端子,用于 4 線操作和保護功能
? PowerFlex 技術:高達 ±210V、高達 ±3.15A(SMU4201)或高達 ±21V、高達 ±3.15A(SMU4001),25W 功率包絡。
? 0.1μV 和 100fA 分辨率
? 快速測量速度高達 200μs(5k/s)
? 連續或脈沖高速輸出,具有線性/對數或任意列表掃描
? 緊湊尺寸
? 內部存儲器,高達 100k 次測量,高達 100k 步進
? “SMU Link” 允許將兩個 SMU 鏈接在一起進行同步操作(可選附件)
? 使用 Test Bridge SMU Windows 軟件(免費下載)完全控制多個單元

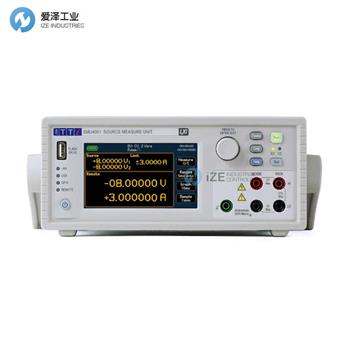

The SMU4000 Series provides class leading performance at a new and affordable price point for a four quadrant SMU. Combining touch screen technology with an intuitive graphical user interface provides a clear and natural f low through the test and measurement process. Integrating a fast and agile, high power four quadrant Voltage/ Current source and advanced precise Voltage/ Current meters in a compact half rack 2U casing, capable of precisely supplying positive and negative voltages, sourcing or sinking power, while simultaneously measuring both current and voltage for I-V characterising. With high current and power combined with fast measurements and low glitch auto ranging speed, it is the ideal solution for industrial development as well as educational environments, identifying the SMU as the all-in-one solution for simplifying test applications such as battery charging/discharging, I-V characterising, semiconductor testing and much more.
? 4-quadrant Source, Sink & Measure
? 0.015% basic accuracy with 6? digit resolution.
? Sense terminals for 4 wire operation and guard capabilities
? PowerFlex technology: up to ±210V, up to ±3.15A (SMU4201) or up to ±21V, up to ±3.15A (SMU4001), 25W power envelope.
? 0.1μV & 100fA resolution
? Fast measurement speeds up to 200μs (5k/s)
? Continuous or pulsed high speed outputs with Linear/Log or arbitrary list sweeps
? Compact size
? Internal memory, up to 100k measurements, up to 100k steps
? ‘SMU Link’ allows two SMUs to be linked together for synchronous operation (optional accessory)
? Full control of multiple units with Test Bridge SMU Windows software (free download)
