HYPERTAC連接器HD系列

請注意:照片可能并不是實際產品,具體請參閱標題和產品規格及所有細節描述。
產品品牌:
型號:HDD032AFP00000

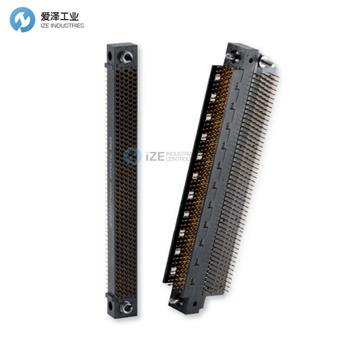

HYPERTAC連接器HDD032AFP00000
預估貨期:
關  鍵  詞:HYPERTAC連接器HDD032AFP00000 HDD078AFP0121
相似產品:
是否有問題?聯系我們工作人員
  郵件聯系

HYPERTAC連接器HD系列產品參數

SPECIFICATION


Materials


Insulators


HDB/C/D/S

Glass reinforced phenolic

HDT

Thermoplastic

Contacts

Copper alloy

Socket wires

Copper alloy

Polarising studs

Copper alloy

and pins

Nickel plated

Signal and Power Contacts


Male pin diameter

0.6mm nominal

1.0mm nominal


3.6mm nominal


Contact plating

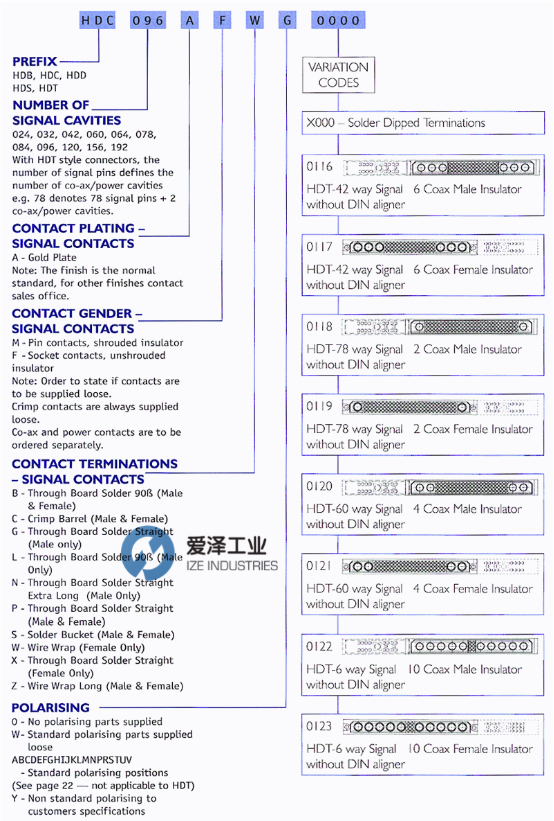

Refer to Ordering

Information


Contact resistance


0.6mm contact

7 milliohms maximum

1.0mm contact

3 milliohms maximum

3.6mm contact

1 milliohm maximum

Termination

3 milliohms maximum

resistance (i.d.c.)


Current rating


0.6mm contact

4 Amps

1.0mm contact

7.5 Amps

3.6mm contact

10 Amps

Voltage Rating


HDB/C/S/T

170V dc or ac peak nominal

HDD

250V dc or ac peak nominal

Proof Voltage


HDB/C/S/T

1.0kV minimum

HDD

1.5kV minimum

Insulation Resistance

5 gigohms minimum at 500V. dc

Engagement/Withdrawal forces

0.6mm contact

0.28N (1.0 oz.) per contact

Mechanical endurance

In excess of 2000 operations with appropriate plating finish

Co-axial Contacts


lmpedence

50 ohm

Frequency

0 - 50 MHz

Dielectric withstanding


voltage

750V rms

Temperature

-55 to + 125°C
