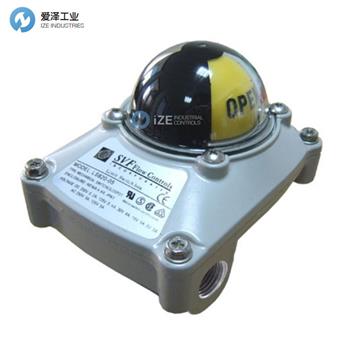

SVF限位開關盒NEXUSLSM2A產品參數
SPECIFICATIONS | STANDARD | OPTIONAL | MATERIALS | |
Enclosure | W eatherproof NEM A 4/4X (IP67) | IP68 Submersible | Housing | Aluminum |
Ambient Tem p. | -4 F to 176 F ( -20 C to 80 C) | Shaft | Stainless Steel | |
Conduit Entry | 2 X 1/2" NPT | Metric | Indicator | Polycarbonate |
Terminal Strip | 8 points | Cam | Polycarbonate | |
Position Indicator | CLOSED (Red), OPEN (Yellow) | CLOSED (Red), OPEN (Green) | Spring | Stainless Steel |
Hous ing Cover Fastener | Stainless Steel | |||
Switch elem ents | 2 X Mechanical SPDT | 2 X Proximity Sensor | O-Ring | NBR |
Bushing | Bronze | |||
External coating | Polyester Powder coating (Silver) | (Black) | Shaft C-Clip | Stainless Steel |
Grounding Screw | Stainless Steel | |||
Shaft | Length 17 mm to NAMUR | Specify | Bracket | Stainless Steel |
SVF限位開關盒產品參數
堅固緊湊的設計
快速設置凸輪是彈簧控制的，不需要任何特殊工具
雙電纜入口，方便現場布線和添加輔助設備（先導閥）
防松蓋螺栓在調試期間不會丟失
通用安裝
機械或接近開關/傳感器的選擇
Rugged and Compact design
Quick-Set cam is spring loaded and does not require any special tools
Dual Cable Entries to facilitate wiring in the field and of the addition of ancillary devices (Pilot Valve)
Captive Cover Bolts will not get lost during commissioning
NAMUR mounting for universal use
Selection of Mechanical or Proximity switch/sensors
SVF限位開關盒其他常見型號：
SVF LS820-05
SVF LS820-10
NEXUSLSM2A
SVF High Performance Limit Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
