ALBRIGHT接觸器SU60系列技術參數
Technical Information | ||
Application | Interrupted | Uninterrupted |
Thermal Current Rating | 100A | 100A |
Intermittent Current Rating: | ||
30% Duty | 185A | 185A |
40% Duty | 160A | 160A |
50% Duty | 140A | 140A |
60% Duty | 130A | 130A |
70% Duty | 120A | 120A |
Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant:(In accordance with UL583*) | ||
Blowouts | 500A at 96V D.C. | |
No Blowouts | 500A at 48V D.C. | |
Rated Fault Current Breaking Capacity (Icn) Resistive Load:(In accordance with UL508*) | ||
Blowouts | 150A at 96V D.C. | |
No Blowouts | 150A at 48V D.C. | |
Maximum Recommended Contact Voltages | ||
Blowouts | 96V | 120V |
No Blowouts | 48V | 60V |
Typical Voltage Drop per pole across New Contacts at 100A | 50mV | |
Mechanical Durability | > 3,000,000 Cycles | |
Coil Voltage Available (Us) (Rectifier board required for A.C.) | 6 - 130V | |

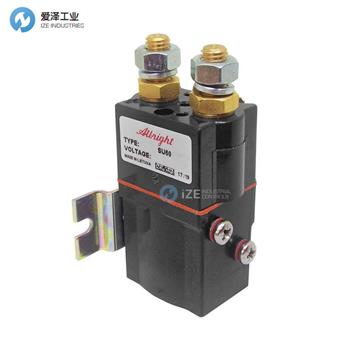

ALBRIGHT接觸器SU60P系列介紹
SU60P 是一款高額定獨立式緊湊型接觸器，密封等級為 IP66。專為間斷和不間斷負載而設計，適用于切換電阻、電容和電感負載。典型應用包括用于小型電動汽車和液壓動力裝置的電機。
SU60P采用單極雙分斷主觸頭，銀合金尖頭，耐焊、耐磨、導電性好。SU60P 具有 M8 螺柱主端子和 6.3mm 鏟形線圈連接。它可以通過 M4 螺紋孔或安裝支架安裝——既可以提供安裝，也可以作為單獨的項目。可以安裝在接觸器的側面或底部。
The SU60P is a high rated freestanding compact contactor which is sealed to IP66. Devised for both interrupted and uninterrupted loads, and is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include motors as used on small electric vehicles and hydraulic power packs.
The SU60P features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SU60P has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M4 tapped holes or mounting brackets – either supplied fitted, or as separate items. Mounting can be on the side or base of the contactor.
ALBRIGHT接觸器SU60P系列其他常用型號：
ALBRIGHT SU60-2013P
ALBRIGHT SU60-2301P
ALBRIGHT SU60-2005P
ALBRIGHT SU60-2015P
ALBRIGHT SU60-2031P
ALBRIGHT SU60-2021P
ALBRIGHT SU60-2029P
ALBRIGHT SU60-2499P
