MTM POWER主切換器PMA/PCMA30系列技術參數
Technical Data General | ||
Isolation Test Voltage | IEC 60 950-1 / UL 60 950-1 (factory test) | 3,3 kVAC |
Isolation Test Voltage (U1 /U2/3) | triple output | 500 VAC |
Isolation Resistance | > 1 GW | |
Output Voltage Separation | IEC 60 950-1 / EN 61 010-1 | double or reinforced isolation |
Overvoltage Category | OV2 | |
Pollution Leve | PD2 | |
Altitude | 2.000 m max. | |
Leakage Current (prim./sec.) | Uin = 230 VAC | 80 μA typ. |
Protection Class | suitable for the use in devices with Protection Class 1 or 2 | |
Protection Degree | EN 60 529 PMA / PCMA | IP00 / IP20 2) |
Ambient Temperature | -25...+65 °C | |
Temperature Coefficient | TA = -25...+65 °C | 0,01 % Uout / K |
Derating single / dual / triple | TA > 50 °C | 2 / 3 / 5 % Uout / K max. |
Cooling | free convection | |
Humidity | non-condensing | 95 % RH max. |
Storage Temperature | -45...+85 °C | |
Case Material / Potting Material | UL94V-0 | |
Dimensions L x W x H | PMA | 90,5 x 65,5 x 33,5 mm |
Weight | PMA / PCMA | 340 g / 380 g |
Diameter of Terminal Clamps | PCMA | 2,5 mm2 max. |

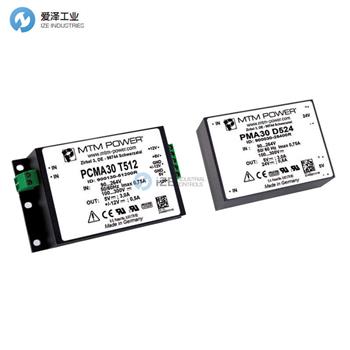

MTM POWER主切換器PMA/PCMA30系列介紹
特征
? 適用于全球應用的寬輸入范圍
? UL和cUL認證
? 為1級或2級做好準備
? CE 符合性
應用
? 工業應用的分散式電源
? 可用于PCB 安裝 (PMA) 和機箱安裝 (PCMA)
? 用于提供過程測量和控制技術、實驗室設備以及系統和信息技術中的電子和電氣電路
Features
? Wide Input Range for Worldwide Application
? UL and cUL Approved
? Prepared for Class 1 or 2
? CE Conformity
Applications
? Decentralised Power Supply for Industrial Applications
? Available for PCB-mounting (PMA) and for chassis mounting (PCMA)
?For supplying of electronic and electrical circuits in process measuring and control technology, laboratory equipment, as well as systems and information technology

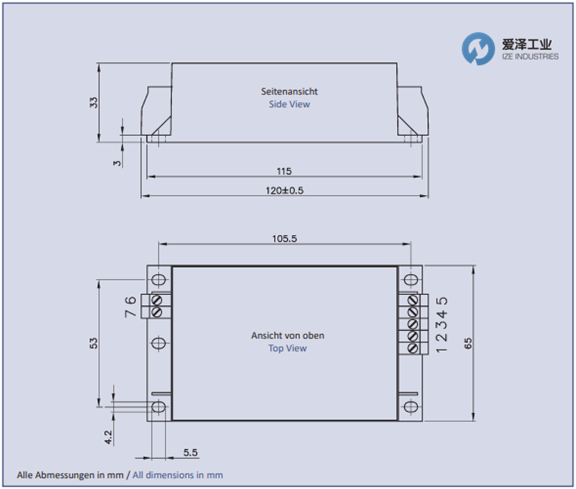

MTM POWER主切換器PCMA30技術尺寸
MTM POWER主切換器PCMA30系列其他常用型號：
MTM POWER PCMA30S05
MTM POWER PCMA30S12
MTM POWER PCMA30S15
MTM POWER PCMA30S24
MTM POWER PCMA30S48
MTM POWER PCMA30D12
MTM POWER PCMA30D15
MTM POWER PCMA30D512
MTM POWER PCMA30D515
MTM POWER PCMA30D524
MTM POWER PCMA30T512
MTM POWER PCMA30T515.
MTM POWER Primary Switcher NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MTM POWER主切換器PCMA30S24的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MTM POWER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
MTM POWER主切換器PCMA30系列PCMA30S24技術參數及尺寸
