HONEYWELL限位開關BX/BX2系列技術參數
Product type | MICRO SWITCH hazardous area limit switches |
Actuators | Side pin plunger |
Circuitry | 1NC 1NO SPDT snap action, double break |
Electrical | 10 A thermal |
Housing material | Aluminum (BX) or Stainless Steel (BX2) |
Termination types | 0.5 in - 14 NPT conduit |
Housing type | BX/BX2 non-plug-in |
Sealing | NEMA 1, 3, 4, 6, 13; IP67 |
Operating temperature* | Standard with fluorosilicone seals: -40 °C to 70 °C [-40 °F to 158 °F] |
ATEX/IEC Ex protection class | II 2 GD, Ex db IIC T6 Gb, Ex tb IIIC T85°C Db |
HONEYWELL限位開關BX/BX2系列介紹
特征
? 認證：UL、CSA、ATEX (CE)、UKEX (UKCA)、IEC Ex、INMETRO（巴西）、NEPSI Ex（中國）和 KOSHA/KTL（部分列表 - 韓國）
? 密封至 IP67、NEMA 1、3、4、6、13
? 產品廣度
? 提供兩種堅固的設計：鋁或耐腐蝕不銹鋼頭和主體
? 頭部和身體之間的隔膜密封提供了額外的保護措施
? 可選的碳氟化合物密封件可用于惡劣的化學或高溫環境
? 將頭部置于相隔 90°的四個位置中的任何一個位置，確保頭對身體的固定
? 自升式壓板端子節省接線時間。
? 種類繁多的無火花執行器、開關選項和頭部樣式，可實現設計靈活性
? 旋轉驅動頭可現場調節，用于順時針驅動、逆時針驅動或兩者兼而有之
? 可選擇銀或鍍金觸點
FEATURES
? Approvals: UL, CSA, ATEX (CE), UKEX (UKCA), IEC Ex, INMETRO (Brazil), NEPSI Ex (China), and KOSHA/KTL (select listings - Korea)
? Sealed to IP67, NEMA 1, 3, 4, 6, 13
? Industry-leading breadth of products
? Two rugged designs are available: aluminum or corrosion-resistant stainless steel head and body
? A diaphragm seal between head and body provides an extra measure of protection
? Optional fluorocarbon seals are available for harsh chemical or higher temperature environments
? Secure head-to-body retention with the head in any one of four positions 90° apart
? Self-lifting pressure plate terminals saves wiring time.
? Wide variety of non-sparking actuators, switch options, and head styles for design flexibility
? Rotary actuated heads are field adjustable for CW actuation, CCW actuation, or both to reduce inventory
? Choice of silver or gold-plated contacts

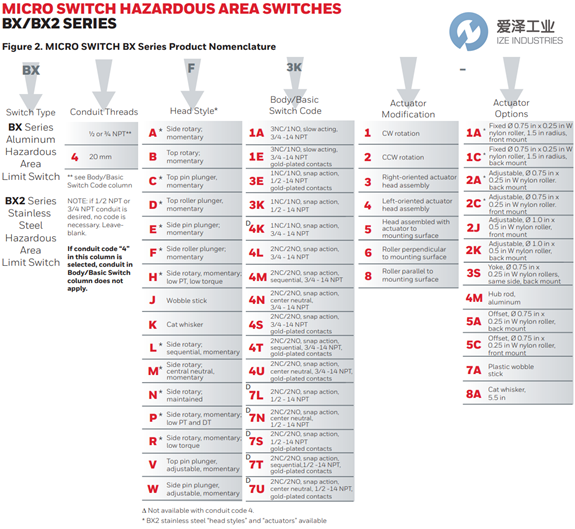

HONEYWELL限位開關BX/BX2系列選型
HONEYWELL限位開關BX/BX2系列其他常用型號：
HONEYWELL BXM4N-1A
HONEYWELL BXN3K
HONEYWELL BX4N3K
HONEYWELL BXN4L
HONEYWELL BX4N4L
HONEYWELL BXM4N
HONEYWELL BX4M4N
HONEYWELL BXB3K
HONEYWELL BXR3K
HONEYWELL BXR3E
HONEYWELL BXR4L
HONEYWELL BXR4S
HONEYWELL LIMIT SWITCHES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL限位開關BXM4N-1A的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HONEYWELL限位開關BX/BX2系列BXM4N-1A技術參數及選型
