Rockwell繼電器440R-S13R2技術參數
General Specifications | |
Attribute | 440R-S13R2 (CI) |
Dimensions, HxWxD [mm (in)] | 119.14 x 22.5 x 113.6 (0.88 x 4.69 x 4.47) |
Shipping Weight, Approx.[g (lb)] | 225 (0.5) |
Wire Size [mm^2 (AWG)] | 0.2…2.5 (24…14) |
Wiring Category | Copper that withstands 75 °C (167 °F) |
Terminal Screw Torque [N.m (Ib.in)] | 0.4 (4) |
Power Supply Voltage Range | 24V DC PELV/SELV, 0.85…1.1 x rated voltage |
Power On Delay [s] | 5.5 |
Power Consumption [W] | 3.5 |
Case Material | Polyamide PA 6.6 |
Terminal Protection | IP20 |
Enclosure Protection | IP40 (NEMA 1) |
Mounting | 35 mm (1.38 in.) DIN rail in enclosure that is rated to a minimum of IP54 |
Rockwell繼電器440R-S13R2產品介紹

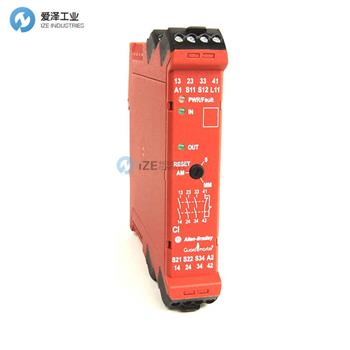

CI 安全繼電器具有一個雙通道輸入和三個機電繼電器輸出。 通過調整前面的開關，可以將 CI 安全繼電器配置為自動或受監控的手動復位。 CI 安全繼電器具有 SWS 輸出，但不支持 SWS 輸入。
CI 安全繼電器與 MSR127 安全監控繼電器兼容。 CI 安全繼電器與 MSR127 繼電器具有相同數量的輸入和輸出、相同的寬度和相同的端子位置。
The CI safety relay has one dual-channel input with three electromechanical relay outputs. The CI safety relay can be configured for automatic or monitored manual reset by adjusting the switch on the front. The CI safety relay has an SWS output, but does not support SWS input.
The CI safety relay is compatible to the MSR127 safety monitoring relay. The CI safety relay has the same number of inputs and outputs, the same width, and the same terminal locations as the MSR127 relay.
Rockwell繼電器其他常用型號：
Rockwell 440R-S13R2
Rockwell 440R-D22R2
Rockwell 440R-D22S2
Rockwell 440R-EM4R2
Rockwell 440R-EM4R2D
Rockwell 440R-S12R2
Rockwell Relay NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于Rockwell繼電器440R-S13R2的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for Rockwell products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
Rockwell繼電器440R-S13R2技術參數介紹
