HONEYWELL限位開關GSA系列技術參數
Description | GSA Safety Switch Series: EN50041 mounting (30 mm x 60 mm) |
Certifications | CE; DOC # 231, EN/IEC 60947-5-1 |
Housing material | GSA/GSC/GSE Series; electrostatic epoxy coated die-cast zinc |
Actuator heads | GSA Series: Side rotary, top pin plunger, top roller plunger, top roller lever |
Conduit/electrical connection | 0.5-14 NPT; 20 mm; PG 13,5; G1/2 (PF1/2) |
Contact type | Snap action, snap action sequential (2 step), slow action break-before-make (BBM), slow action make-before-break (MBB), slow action |
Contact design | Double break, electrically separated |
Contact material | Silver alloy (standard), gold-plated (low energy applications) |
Utilization category | AC-15, A300/A600; DC-13, Q300 |
Rated operational voltage (Ue) | 240 Vac, 600 Vac, 250 Vdc |
Rated operational current (Ie) | 3 A, 1.2 A, 0.27 A |
Thermal current (Ith) | 10 A |
Rated insulation voltage (Ui) | 300 V, 600 V |
Rated impulse withstand voltage (Uimp) | 2500 V |
Short circuit protective device (SCPD) | Class J fuse (10 A/600 V) |
Pollution degree | 3 |
Environmental sealing | GSA Series (metal body): IP67, NEMA 1, 4, 12, and 13 |
Operating temperature | GSA Series with side rotary actuator head: -40 °C to 85 °C [-40 °F to 185 °F] |
Shock | 50 G per IEC 60068-2-27 |
Vibration | 10 G per IEC 60068-2-6 |
MCTF (Mechanical life) | GSA Series: >1,000,000 cycles with single-sided confidence limit of 100% |
MCTF (Electrical life) | GSA Series: >25,000 cycles with single-sided confidence limit of 100% |
HONEYWELL限位開關GSA系列介紹
GSA 系列金屬限位開關按照 EN50041 標準設計，安裝方式為 30 x 60 mm。GSA 系列限位開關最多可提供四個觸點和各種執行器頭，適用于各種應用。
開關的紅色主體顏色可輕松識別用于安全應用的開關。盡管這些開關是為安全應用而設計的，但這些開關也可以應用于非安全應用。

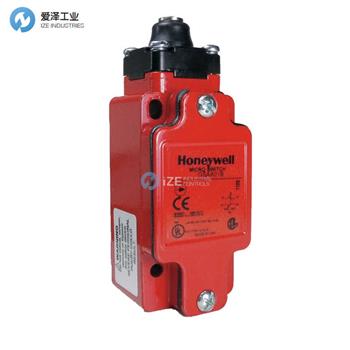

The GSA Series metal limit switches are designed to the EN50041 standard with the 30 x 60 mm mounting pattern. Available with up to four contacts and a variety of actuator heads, the GSA Series limit switches are suitable for wide variety of applications.
The red body color of the switch easily identifies the switch for safety applications. Although the switches are designed for safety applications, these switches can also be applied in non-safety applications.

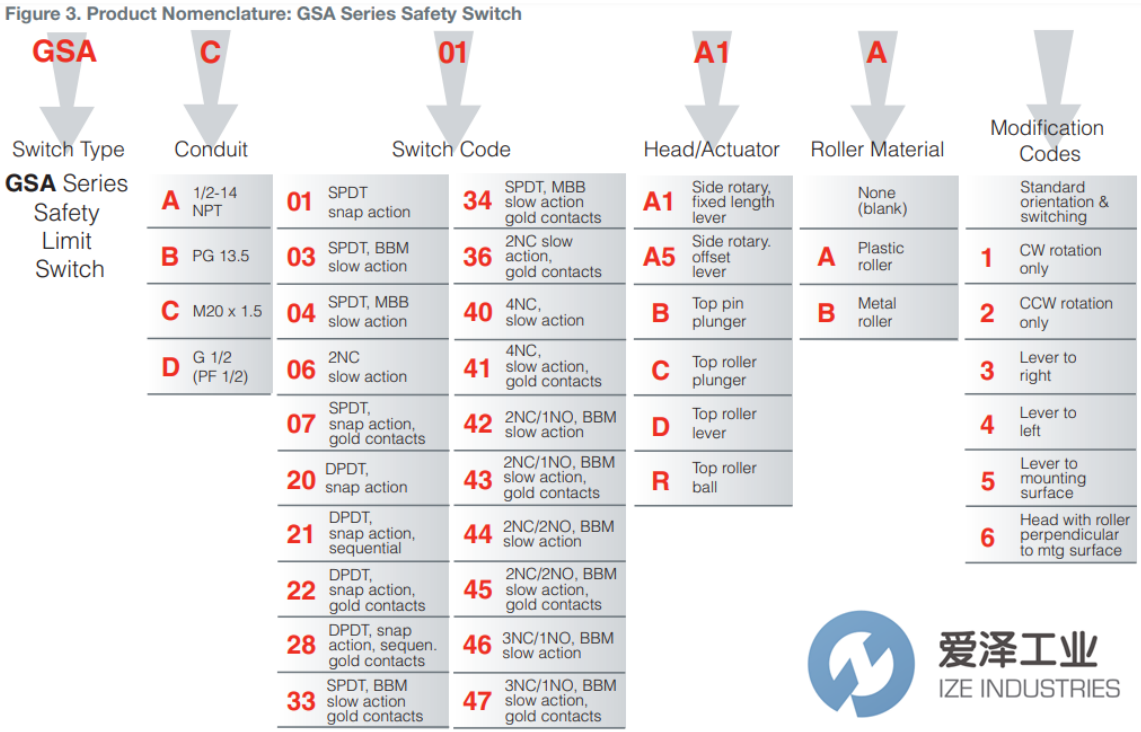

HONEYWELL限位開關GSA系列選型
HONEYWELL限位開關GSA系列其他常用型號：
HONEYWELL GSAB20C
HONEYWELL GSAC36A1B
HONEYWELL GSAA41A1B
HONEYWELL GSAAO1A1B
HONEYWELL GSAC47C
HONEYWELL GSAC47A1B
HONEYWELL GSAC36C
HONEYWELL GSACO1C
HONEYWELL GSACO1B
HONEYWELL GSACO1A1B
HONEYWELL GSAA36C
HONEYWELL GSAA36A1B
HONEYWELL GSAAOIC
HONEYWELL GSAAO1B
HONEYWELL GSAB20A18
HONEYWELL GSAA41A1B
HONEYWELL SAFETY SWITCHES NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于HONEYWELL限位開關GSAB20C的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for HONEYWELL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
HONEYWELL限位開關GSA系列GSAB20C技術參數及選型
