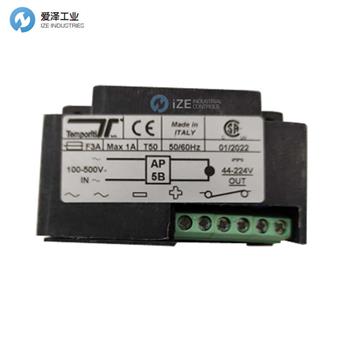

TEMPORITI整流器GSB-AP5BR技術參數
Electrical Specifications: | |
Power Supply: | 100-500 Volt ac |
Frequency: | 50-60 Hz |
Output voltage: | 44-224 Volt dc |
Output Current: | 1 Ampere |
Fuse: | F 3Ampere |
Environment temperature: | -20/+50°C |
Interval between excitations: | minimum 1,5 seconds |
Mechanical dimensions: | |
Width | 68 mm |
Depth | 41,5 mm |
Height | 23 mm |
TEMPORITI整流器AP5BR產品介紹
AP5BR 設備是一種半波整流器，允許輸入電源在 100 至 500 Vac 之間；與標準制動器相比，它特別適用于需要更短電樞板釋放時間的應用。特殊的內部電子配置保證了高干預速度和出色的可靠性。該設備配備了一個電路，以確保決定性的激勵（制動器打開），因為當開啟時，它會在幾分之一秒內為制動器提供全波。在此激勵時間（啟動）之后，制動器以半波供電，從而減少電流吸收。輸入和輸出均受到過壓尖峰保護。容器完全更新，尺寸減小，入口和出口帶有接線板?？梢栽诙俗?4 和 5 之間插入一個開關，以消除制動器的直流電壓，從而縮短去勵磁時間。電路完全安裝在容器中，并浸沒在環氧樹脂中以確保更好的保護。
The AP5BR device is a half-wave rectifier with an admissible input power supply between 100 and 500 Vac; it is particularly suitable in those applications where a shorter armature plate release time is required compared with a standard brake. The particular internal electronic configuration guarantees a high intervention speed and excellent reliability. The device is equipped with a circuit to ensure a decisive excitation (opening of the brake) as, when switched on, it feeds the brake with a full wave for a fraction of a second. After this excitation time (start) the brake is powered with a half wave thus reducing the current absorption. Input and output are protected from overvoltage spikes. The container is completely renewed, of reduced dimensions and inlet-outlet are with terminal block. A switch can be inserted between terminals 4 and 5 to remove DC voltage from the brake, improving the de-excitation times. The circuit is completely housed in a container and drowned in epoxy resin to ensure better protection.
TEMPORITI整流器GSB系列其他常用型號：
TEMPORITI GSB-AP5B
TEMPORITI GSB-AS4
TEMPORITI GSB-AS2R
TEMPORITI GSB-EL440
TEMPORITI GSB-AP4R
TEMPORITI GSB-AP5BR
TEMPORITI RECTIFIER NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TEMPORITI整流器GSB-AP5BR的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TEMPORITI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
