ARTECHE電壓互感器AGN-24技術參數
ELECTRICAL CHARACTERISTICS | |
IEEE | |
?Highest voltage | 26(kV) |
?Highest voltage for equipment | 25,5(kV) |
Frequency | 50/60(Hz) |
Test voltage at industrial frecuency (during 1 min) | |
On the primary and secondary | 50(kV) |
On the secondary winding | 2,5(kV) |
?BIL and full wave | 150（kV crest） |
Highest primary current (A) | |
- Simple Primary Ratio | 4000 |
?Secondary voltage | |
Secondary current (1 or 2 A on request) | 5A |
?Number of cores | 3 |
?Maximum continuous current (IN) | 1,2(lN) |
?Maxim. (Short-time) thermal current during 1 sec. | 100(kA) |
?Torque | |
- Screw M 6 | 0,5 m x kg |
- Screw M 8 | 1,5 m x kg |
- Screw M 10 | 2,0 m x kg |
Aproximate weight | 42 Kg |
?Can be supplied with primary bar made of copper (silver-plate on request) | |
?Ground terminal made of steel (zincked and bi-cromated) | |
?Secondary terminals cover made of policarbonate. Can be supplied made of zincked and bi-chromed steel on request. | |
ARTECHE電壓互感器AGN-24產品介紹

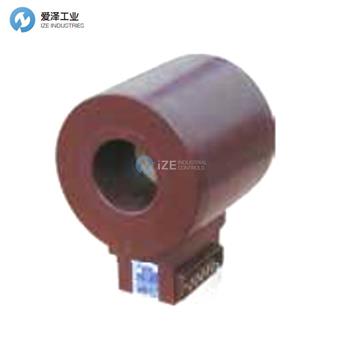

電流互感器，支撐型，適用于室內使用，樹脂澆注。設計用于測量和/或保護。
Current transformer, support-type, valid for indoor service, cast resin. Designed for measurement and/or protection.
ARTECHE電壓互感器其他常用型號：
ARTECHE AGN-24
ARTECHE UCL-24
ARTECHE IFH-3
