TER限位開關7551-7552系列技術參數
General specifications | |
Conformity to Community Directives: | 2014/35/UE 2006/42/CE |
Conformity to Standards: | EN 60204-1 EN 60947-1 EN 60947-5-1 EN 60529 |
Storage ambient temperature: | -40°C/+70°C |
Operational ambient temperature: | -40°C/+70°C |
Protection degree: | IP66 max. with dedicated cable clamp M20 |
Insulation category: | Class I |
Cable entry: | cable clamp M20 |
Operation frequency: | 3600 operations/hour max |
Specifications of the microswitches | |
Utilisation category: | AC 15 |
Rated operational current: | 3 A |
Rated operational voltage: | 250 Vac |
Rated thermal current: | 10 A |
Rated insulation voltage: | 300 Vac |
Mechanical life: | 1x106 operations |
Connections: | screw-type terminals |
Tightening torque: | 0.8 Nm |
Markings and homologations: | CE cULus EAC |
TER限位開關7551-7552系列介紹
描述
交叉位置限位開關設計用于控制橋式起重機、起重機和復雜機床的運動。
所采用的材料和技術解決方案的選擇使其能夠在惡劣的操作條件下使用。
特點
- 旨在保證在最具挑戰性的操作條件下具有出色的性能。
- 每 90° 有 4 個保持位置的桿。
- 4 個固定孔。
- 用于安全功能的正開常閉觸點。
- 開關的機械壽命：100 萬次操作。
- 操作頻率：最大 3600 次操作/小時。
- IP 防護等級：7551-7552 為 IP66，帶有特定的電纜夾 M20。
- 耐極端溫度：-40°C 至 +70°C。
- 它采用壓鑄鋁合金外殼，襯套由燒結材料制成，頭部可抵抗任何劇烈沖擊、化學侵蝕和生銹，減少對頭部的日常維護操作的需要。
- 使用的所有材料和組件都是耐磨的，并保證設備防水和防塵。
DESCRIPTION

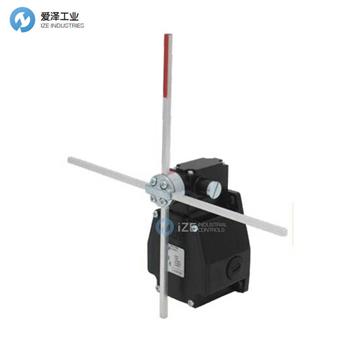

Cross position limit switches designed for controlling the movement of overhead travelling cranes, hoists and complex machine tools.
The choice of materials and technical solutions adopted enable use in harsh operating conditions.
Features
- Designed to guarantee excellent performance in the most challenging operating conditions.
- Rods with 4 maintained positions every 90°.
- 4 fixing holes.
- Positive opening NC contacts for safety functions.
- Mechanical life of switches: 1 million operations.
- Operation frequency: 3600 operations/hour max.
- IP protection degree: 7551-7552 are classified IP66 with specific cable clamp M20.
- Extreme temperature resistance: -40°C to +70°C.
- It features die-cast aluminum alloy enclosure, with bushings made of sinterized material and head made of zama to resist any violent impact, chemical aggression and rust and reduce the need for routine maintenance operation on the head.
- All materials and components used are wear resistant and guarantee protection of the unit against water and dust.

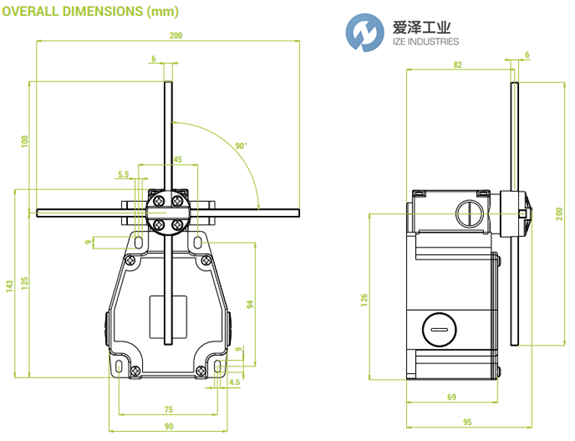

TER限位開關7551-7552系列技術尺寸
TER限位開關7551-7552系列其他常用型號：
TER PF26755100
TER PF26755200
TER PF26755124
TER Position limit switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TER限位開關PF26755100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TER products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
TER限位開關7551-7552系列PF26755100技術參數及尺寸
