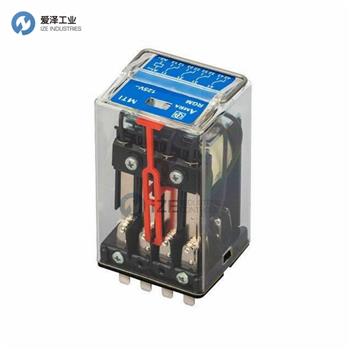

AMRA MTI繼電器RGME 17技術參數
RGM |
E: Energy |
1: Standard |
7: 4 SPDT contacts with magnetic arc blow-out |
AMRA MTI繼電器RCM/RDM系列產品介紹
DESCRIPTION
RGM series relays are highly reliable products providing top performance, suitable for applications in particularly harsh and unsettled environments, such as high voltage electricity distribution stations and medium voltage substations.
Knurled contacts to provide lower ohmic resistance thanks to the multiple electrical connection points: extended electrical life expectancy of the component, optimal performance for strongly inductive DC loads and for very low loads, such as in the case of interface signals.
Exceptional breaking capacity for controlling very heavy duty DC loads, also with intensive switching frequency. Optional magnetic arc blow-out for even higher breaking capacity.
Elevated production versatility. Nominal voltage available from 12 to 220VDC/440VAC, with multiple operating ranges. Facility to adapt the products to meet specific application requirements.
The typical application sectors are among the most demanding, such as electricity generating stations, electrical transformer stations, fixed equipment for railways, or industries using continuous production processes (chemical and petrochemical, rolling mills, cement works, etc.).
SPECIFICATIONS
Instantaneous plug-in relays with 4 contacts, 12 A
Solid and rugged construction for intensive duty
Very high electrical life expectancy and exceptional endurance
Self-cleaning knurled contacts
Optional magnetic arc blow-out
Fitted with mechanical optical contact status indicator as standard
Wide variety of configurations and customizations
Wide range of sockets
Transparent cover, pull-out handle
Positive mechanical keying for relay and socket
描述
RGM 系列繼電器是具有頂級性能的高度可靠產品，適用于特別惡劣和不穩定環境中的應用，例如高壓配電站和中壓變電站。
由于多個電氣連接點，滾花觸點可提供更低的歐姆電阻：延長組件的電氣壽命預期，在強電感直流負載和極低負載（例如接口信號的情況下）的最佳性能。
出色的分斷能力，用于控制非常重的直流負載，同時具有密集的開關頻率?？蛇x的磁弧滅弧裝置可實現更高的分斷能力。
提高生產的多功能性。標稱電壓范圍為 12 至 220VDC/440VAC，具有多個工作范圍。使產品適應特定應用要求的設施。
典型應用領域是要求最高的領域，例如發電站、變電站、鐵路固定設備或使用連續生產過程的行業（化工和石化、軋鋼廠、水泥廠等）。
規格
帶 4 個觸點的瞬時插入式繼電器，12 A
堅固耐用的結構，適用于高強度工作
非常高的預期電氣壽命和出色的耐用性
自清潔滾花觸點
可選磁弧滅弧
標配機械光學觸點狀態指示器
多種配置和定制
廣泛的插座
透明蓋，拉出式把手
繼電器和插座的正向機械鍵控
AMRA MTI繼電器其他常用型號：
AMRA MTI RGME 17
AMRA MTI RGME37-C048/TM
AMRA MTI RGMF17-A110-OOG
AMRA MTI High Voltage Relay NEW + ORIGINAL+ ONE YEAR WARRANTY
