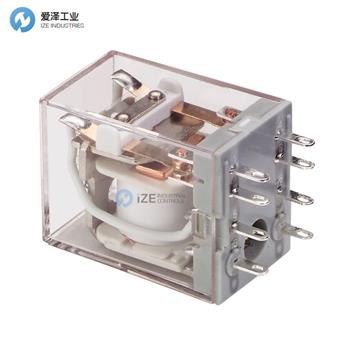

C3CONTROLS繼電器GPRM-S1C12ZC-3技術參數
Relay Type | Miniature Slim Line Square Base Relay (Industrial) w/Blade |
Poles & Current Rating | SPDT, 12A (5 Blade) |
Coil Voltage | 24V DC |
Actuator Options | Light & Mechanical Actuator |
Catalog Part Number: | GPRM-S1C12ZC-3 |
Miniature Slim Line Square Base Relay (Industrial) w/Blade, SPDT, 12A (5 Blade), 24V DC, Light & Mechanical Actuator |
C3CONTROLS繼電器介紹
Pole combinations available in SPDT, DPDT, 3PDT and 4PDT with a carrying current rating of 5A- 25A.
Operating coil voltage options in 24-240V AC and 24-110V DC.
Class 1, Div. 2 hermetically sealed relays available in 5A and 12A.
Mechanical actuator included as standard. Optional indicating light (red for AC / green for DC) & mechanical actuator.
Note: recommend that the hermetically sealed miniature square base relay be used in conjunction with retainer clip GPRA-RC4.
提供 SPDT、DPDT、3PDT 和 4PDT 的極組合,承載電流額定值為 5A-25A。
操作線圈電壓選項為 24-240V AC 和 24-110V DC。
Class 1, Div 2 密封繼電器提供 5A 和 12A。
機械執行器作為標準配置??蛇x指示燈(紅色用于交流 / 綠色用于直流)和機械執行器。
注意:建議密封微型方形底座繼電器與固定夾 GPRA-RC4 一起使用。
C3CONTROLS繼電器其他常用型號:
C3CONTROLS GPRM-S1C12ZC-3
C3CONTROLS GPRM-S1C12ZC-3-3
C3CONTROLS GPRS-B3C20D-3
C3CONTROLS GPRS-B3C20ZJ-3
C3CONTROLS GPRM B2C110ZC-3
C3CONTROLS GPRM-S1C12ZC-3-3
C3CONTROLS GPRM-B4C10ZC
C3CONTROLS GPRM-S1C12ZC-3
C3CONTROLS GPRM-B4C10D-3
C3CONTROLS GPRM-S1C12C
C3CONTROLS GPRM-S1C12D
C3CONTROLS GPRM-S1C12ZC-3
C3CONTROLS GPRM-S1C12ZC
C3CONTROLS GPRM-S1C12ZC-3
C3CONTROLS GPRM-S1C12ZC-3
