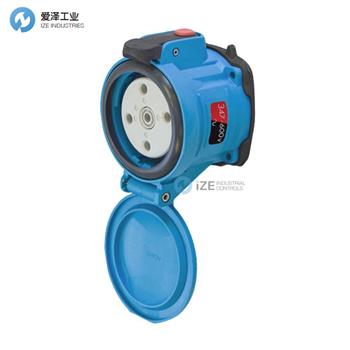

MELTRIC插座63-34147技術參數
Rated Current (A) | 30A |
Rated Voltage (V) | 347/600 VAC |
Horsepower Rating | NA/15HP |
Contact Configuration | 3P+N+G |
Auxiliary Contacts | NO AUX |
Ratings Information | SWITCH RATED |
Environmental Rating | Type 4X |
Short Circuit Rating | 100 KA - MAKE & WITHSTAND |
Impact Rating | IK08 |
Material | POLY |
Product Color | BLUE |
Minimum Operating Temperature | -F40 |
Maximum Operating Temperature | 140F |
Wiring Capacity - Phase Contacts | 14 AWG – 8 AWG SCREW TERMINAL |
Applicable Standards | UL 1682 |
Accessory Size | 2 |
MELTRIC插座DSN30系列介紹
Max Amperage & Voltage:30 A, 600 VAC
Switch-Rating (AC Only):Branch Circuit & Motor Circuit Disconnect Switching
Short Circuit Rating:100kA Close & Withstand Testing was performed with RK1 current limiting fuses sized at 400% of the highest full load motor ampacity associated with the devices hp rating.
Environmental Ratings:Type 4X/IP69/IP69K*
*Also meets IP66/IP67 requirements
Temperature Range:Min -40°F/Max 140°F See pg 258 for temps below -15°F.
Wiring Capacity:Min 14 AWG Max 8 AWG Aux Contacts - 14 AWG
Certifications:UL 2682, UL 1682, CSA 182.1
最大電流和電壓:30 A, 600 VAC
Switch-Rating (AC Only):分支電路和電機電路斷開開關
短路額定值:100kA 閉合和耐受測試是使用 RK1 限流熔斷器進行的,該熔斷器的規格為與設備額定功率相關的最高滿載電機載流量的 400%。
環境等級:Type 4X/IP69/IP69K*
*也符合 IP66/IP67 要求
溫度范圍:最低 -40°F/最高 140°F,請參閱第 258 頁了解低于 -15°F 的溫度。
接線容量:Min 14 AWG Max 8 AWG Aux Contacts - 14 AWG
認證:UL 2682、UL 1682、CSA 182.1
MELTRIC插座DSN30系列其他常用型號:
MELTRIC 63-34045
MELTRIC 63-38045
MELTRIC 63-34047
MELTRIC 63-38047
MELTRIC 63-34147
MELTRIC 63-38147
MELTRIC 63-34042
MELTRIC 63-38042
MELTRIC 63-34043
MELTRIC 63-38043
MELTRIC 63-34142
MELTRIC 63-38142
MELTRIC 63-34143
MELTRIC 63-38143
