ATO限位開關ATO-HTLS-RL技術參數
Specification: | |
Model | ATO-HTLS-XWKA |
Weight | 258g |
Radius of roller lever | 38mm |
Rated voltage | 220VAC (Customizable rated voltage is shown in the reference table below.) |
Rated current | 5A (Customizable rated current is shown in the reference table below.) |
Contact type | 1NO+1NC (NC pin: 1 & 2, NO pin: 3 & 4) |
Operating speed | 1mm/s~2m/s |
Operating frequency | Machinery: 120 times/minute |
Contact resistance | ＜15MΩ, initial stage |
Insulation resistance | ＞100MΩ (＜500VDC) |
Withstand voltage | Between no-connection terminals: 1000VAC, 50/60Hz lasts 1 minute |
Vibration | Misoperation endurance: 10~55Hz, 1.5mm, double-amplitude |
Impact | Mechanical endurance: ＞1000m/s2 (＞100G) |
Shell material | Cast aluminum alloy |
Temperature | -10~+350℃ (14~622℉) |
Humidity | ＜95%RH |
Working life | Machinery: ＞15million times |
Protection class | IP66 |
ATO限位開關ATO-HTLS-RL產品介紹

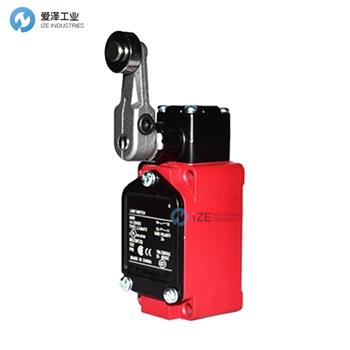

High temperature limit switch adopts one roller lever with a radius of 38mm and fully enclosed 1NO + 1NC contact switches casting from high temperature resistant material, can be used in the environment temperature 350℃ (622℉) and without being damaged by oxidation or pollution. The default rated current and voltage is 5A/220VAC. Customizable voltage is DC 0-220V and AC 0-480V. Roller lever limit switch has automatic reset function. It is usually used for the machinery operating at a low speed.
High temperature limit switch has roller lever R38, contact type 1NO + 1NC and rated current/voltage 5A/220VAC.
高溫限位開關采用一個半徑為38mm的滾輪杠桿，并采用耐高溫材料鑄造而成的全封閉1NO + 1NC接觸開關，可在環境溫度350℃（622℉）下使用，且不受氧化或污染的損害。默認的額定電流和電壓為5A / 220VAC。可定制的電壓為DC 0-220V和AC 0-480V。壓桿限位開關具有自動復位功能。通常用于低速運轉的機器。
高溫限位開關具有滾輪操縱桿R38，觸點類型1NO + 1NC，額定電流/電壓5A / 220VAC。
ATO限位開關ATO-HTLS-RL技術尺寸
ATO限位開關其他常用型號有：
ATO ATO-HTLS-RL
ATO ATO-HTLS-ARL
ATO ATO-HTLS-RP
ATO ATO-HTLS-TP
ATO ATO-HTLS-CS
ATO Limit switch NEW + ORIGINAL+ ONE YEAR WARRANTY
