TECHNOR限位開關XCWF1102停產替代型號為XCWD21F0L2
TECHNOR限位開關XCWD系列技術規格
TECHNICAL DATA | |
Material | Zamac |
IP rating | IP66/67 according to EN/IEC 60529 |
Operating temperature | -20°C ... +60°C |
Certificate | INERIS 03ATEX0083X |
Marking | II 2 GD |
Repeat accuracy | 0.05 mm on the tripping points, with 1 million operation cycles for actuator with end plunger |
Shock resistance | 25 gn (18ms) according to IEC 60068-2-27 |
Vibration resistance | 5 gn according to IEC 60068-2-27 |
Rated thermal current | 6 A for 2 contacts according to versions, 3 A for 4 contacts |
Rated insulation voltage | 400 V according to IEC 60947-5-1 |
Contact blocks | Snap action - 1 x NC + 1 x NO or 2 x NC + 2 x NO |
Resistance across terminals | ≤ 25 m? according to IEC 60255-7 category 3 |
Electrical features of the contacts | Switches with 2 contacts |

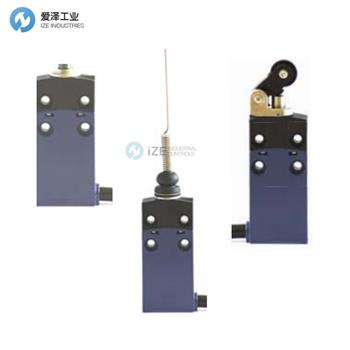

TECHNOR限位開關XCWD系列選型及介紹
The XCWD limit switches is a safe bet for controlling movement. It benefits from the latest developments: modularity, compactness, a very broad range of actuators.
They are designed for intensive use and a very good repeatability.
They are provided in complete assemblies or variable composition with:
? 2 or 4 electrically separate snap action contacts
? Heads that can be adjusted from 15° to 15° on 360° relative to the body
? can substitute the previous range XCWA and XCWF
XCWD限位開關是控制運動的安全選擇。它得益于最新發展：模塊化，緊湊性，種類繁多的執行器。
它們專為密集使用和非常好的可重復性而設計。
它們以完整的程序集或可變組成的形式提供：
?2或4個電氣分離的速動觸點
?頭部可相對于身體在360°上從15°調整到15°
?可以替代以前的范圍XCWA和XCWF

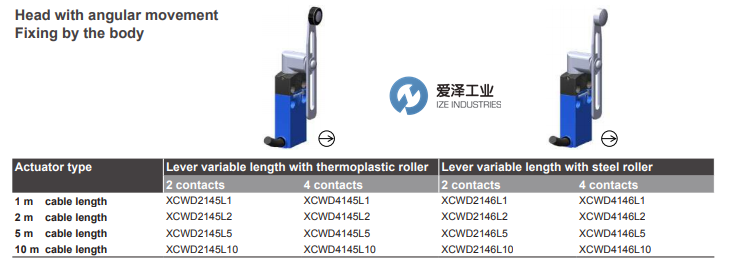

TECHNOR限位開關XCWD系列其他常用型號：
TECHNOR XCWD2145L1
TECHNOR XCWD4145L1
TECHNOR XCWD2146L1
TECHNOR XCWD4146L1
TECHNOR XCWD2145L2
TECHNOR XCWD4145L2
TECHNOR XCWD2146L2
TECHNOR XCWD4146L2
TECHNOR XCWD2145L5
TECHNOR XCWD4145L5
TECHNOR XCWD2146L5
TECHNOR XCWD4146L5
TECHNOR XCWD2145L10
TECHNOR XCWD4145L10
TECHNOR XCWD2146L10
TECHNOR XCWD4146L10
TECHNOR Limit switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TECHNOR限位開關XCWD21F0L2的疑問，請隨時與我們電聯，（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for TECHNOR products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
TECHNOR限位開關XCWD系列XCWD21F0L2選型
