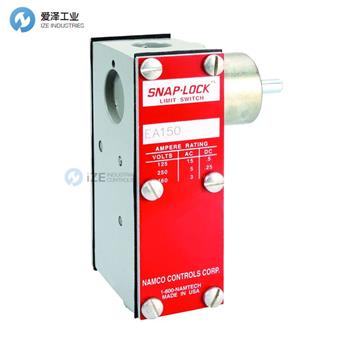

NAMCO限位開關EA15030014技術參數
ROTARY TYPE | |
Model Number | EA150-30014 |
Description | Standard Unit 1 N.O. - 1N.C. |
Dir. of Operation | CW/CCW |
Travel to Make or Break Contacts | 4° |
Torque Inch Oz | 5 |
Over Travel | 180° |
Total Travel | 360° |
NAMCO限位開關EA150系列介紹及選型
旋轉單元在重力作用下返回到設定位置，并且順時針或逆時針旋轉360度。跳閘扭矩范圍為1.5至7英寸盎司（基于所選的輸出）。擺動單元為彈簧復位，跳閘扭矩為15英寸盎司。
輸出包括SPDT（1 N.O.和1 N.C.）和DPDT（2 N.O.和2 N.C.）觸點，或具有10-30 VDC，PNP或NPN輸出的特殊電子版本。如果需要，輸出指示燈是可選的。
EA150超靈敏限位開關已廣泛用于振動碗進料器，小零件感測或計數，計量裝置，延時機構，安全互鎖開關應用，液位控制，調速器以及各種其他工業應用中的填充檢測需要準確性和可靠性。
Rotary units are gravity return to the set position and have 360° of total travel either clockwise or counterclockwise. Trip torques range from 1.5 to 7 inchounces based on output selected. Oscillating units are spring return with 15 inch-ounce trip torque.
Outputs include SPDT (1 N.O. and 1 N.C.) and DPDT (2 N.O. and 2 N.C.) contacts, or a special electronic version with 10-30 VDC, PNP or NPN output. Output indicator lights are optional if required.
EA150 Super-Sensitive Limit Switches have been extensively used for fill detection on vibratory bowl feeders, small part sensing or counting, gauging devices, time delay mechanisms, safety interlock switch applications,liquid level controls, governors and a wide variety of other industrial applications that require accuracy and dependability.

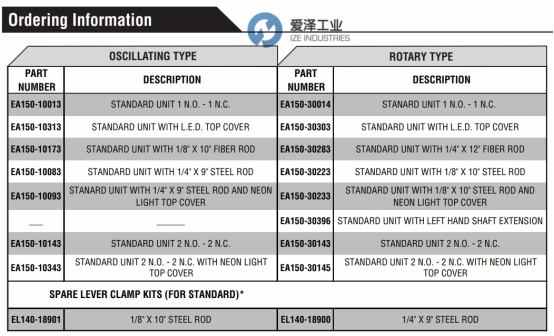

NAMCO限位開關EA150系列其他常用型號：
NAMCO EA150-10013
NAMCO EA150-10313
NAMCO EA150-10173
NAMCO EA150-10083
NAMCO EA150-10093
NAMCO EA150-10143
NAMCO EA150-10343
NAMCO EA150-30014
NAMCO EA150-30303
NAMCO EA150-30283
NAMCO EA150-30223
NAMCO EA150-30233
NAMCO EA150-30396
NAMCO EA150-30143
