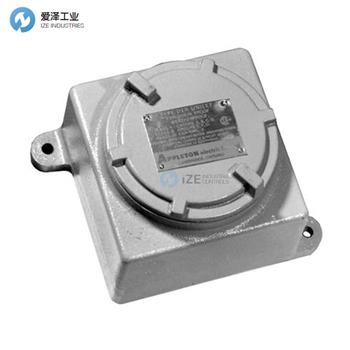

CURLEE防爆電線盒MWD-42-553-100技術參數
Specifications | |
CEC Certifications and Compliances | Class I, Division 1 and 2, Groups A, B, C, D; Class I, Zone 1 and 2; Class II, Division 1 and 2, Groups E, F, G; Class III, Enclosure 4 |
Standard Materials | Copperfree (4/10 of 1% max.) aluminum or malleable iron bodies. DER and GUB covers are copperfree (4/10 of 1% max.) aluminum. GUBM covers are copperfree (4/10 of 1% max.) aluminum and glass |
Option | Other hub arrangements, hub sizes means of instrument fastening are available. Instrument mounting plates or brackets can be furnished. DER1C or DER1CA are available without mounting lugs. See catalog pages for details |
CURLEE防爆電線盒MWD-42-553-100產品介紹
防爆，防塵，水密
精確攻絲的錐形導管螺紋可實現緊密，剛性的連接并確保地面連續性
所有導管集線器和開口均提供至少五個全螺紋以滿足CSA要求
配有安裝耳和蓋
配有DER和GUB接線盒的表面蓋上帶有凸耳，用于握住鋼筋或扳手。可以使用下面列出的其他樣式的封面
密封蓋有一個塞孔，安裝后可以通過該孔用密封膠填充盒子。使用密封蓋時，加拿大電氣法規（CEC）禁止接線盒內的接頭或分接頭
圓頂蓋允許拉出導線，導線的末端延伸到超出箱體的位置，在箱體上可以很容易地進行拼接。接頭不必擠回盒子中，而是可以將圓頂罩用于外殼和保護罩時照原樣放置
DER和GUB系列有各種尺寸和位置可供選擇，用于鉆孔和螺紋導管開口。它們適合用作分類位置的繼電器，儀表和其他控制設備的外殼
GUBM系列配有圓形防爆玻璃窗罩，可直接讀取封閉的儀器。它配有一個3/4“的鉆孔和螺孔。提供的已安裝凸臺可以進行鉆孔和螺孔以用于緊固件
Explosionproof, dust-ignitionproof, watertight
Accurately tapped, tapered conduit threads for tight, rigid joints and ground continuity
All conduit hubs and openings provide a minimum of five full threads to meet CSA requirements
Provided with mounting lugs and covers
Surface covers furnished with DER and GUB junction boxes have lugs to take a bar or wrench. Other style covers, as listed below, are available
Sealing covers have a plugged hole through which the box can be filled with sealing cement after installation. When sealing covers are used, splices or taps within the junction boxes are prohibited by the Canadian Electrical Code (CEC)
Dome covers permit conductors to be pulled in with the ends extending well out beyond box body where splices can easily be made. The splices need not be crowded back into the box, but can be left as is when dome cover is used for their enclosure and prot
DER and GUB Series are available in a wide selection of sizes and locations for drilled and tapped conduit openings. They are suitable for use as an enclosure for relays, instrument and other control apparatus in classified locations
GUBM Series comes complete with a round, explosionproof glass window cover which permits direct reading of an enclosed instrument. It is furnished with one 3/4" drilled and tapped entry. The mounted bosses, provided, can be drilled and tapped for fasteni
CURLEE接線盒其他常用型號：
CURLEE MWD-42-553-100
CURLEE DER1C
CURLEE GUB2C
CURLEE GUBM-2C
CURLEE NEW + ORIGINAL+ ONE YEAR WARRANTY
