CONTREL繼電器ELR-7規格描述
ELECTRICAL CHARACTERISTICS | |
Auxiliary Voltage supply | 24 - 48 Vac/dc / 110 Vac/dc - 230 Vac ± 20% |
Frequency | 50 ÷ 60 Hz |
Maximum consumption | 3 VA |
Current tripping ajustment range I N | 0,025÷0,25A K=0,1 - 0,25÷2,5A K=1 - 2,5÷25A K=10 25÷250A* |
Tripping time adjustment range t | 0,02÷0,5 sec K=1 - 0,2÷5 sec K=10 |
Transformadores toroidales externos y accesorios | Ct1/...serie - setting multiplier,,adaptor CT |
Output: 2 voltage free contacts | 2 s NO-C-NC 5A 250V resistive load |
Working Temperature | -10 + 60°C |
Storing Temperature | -20 + 80°C |
Relative humidity | <90% |
Insulation Test | 2,5 kV 60 sec. |
Standards | CEI 41-1 - IEC 255 - VDE 0664 |
Electromagnetic Compatibility | CEI-EN 50081-1 CEI-EN 50082-2 |
Protection degree according DIN 40050 | IP40 front with cover (opt. Ip55) - IP 20 enclosure |
Mounting according DIN 43700 | Flush mounting DIN 48x48mm, depth 72mm |
Wiring method | Drawing out terminals for cross section wires 2,5 mm2 |
CONTREL繼電器ELR-7接線圖

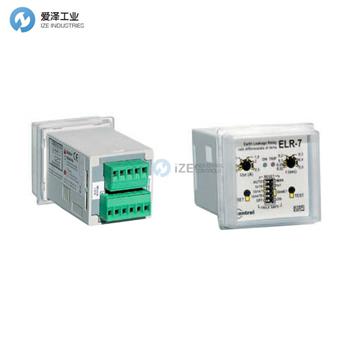

CONTREL繼電器說明
The is an earth leakage protection device , which manitaining its ample scope of settings, both for current and time delay, it has been built in a flush mounting enclosure DIN 48x48mm with a reduced depth of 72mm, including wiring terminals.
This allows to reduce the over all dimensions to a minimu, in those applications in which the space is critical, like in MCC’s.
The present ELR, so as the others of the ELR’s families, has a built-in filter,at the input circuits, which brings it practically immune to external distortions. It is possible to program the tripping current (25mA ÷ 25 A), the tripping time delay (0,02 ÷ 5 sec.,) and the working mode of the reset (automatic or manual), at its front plate.
The ELR-7 has a microswitch to select the working mode of the end relay, normally de-energized, whilst at rest (no tripped condition) or normally energized ( fail safe).
On top of the above, it also has 2 change-over separated and a transparent front cover for protection. Its removable wiring terminals rends it very easy to install.
這是一種漏電保護裝置，它可充分利用其在電流和時間延遲方面的設置范圍，它內置于DIN 48x48mm的嵌入式安裝外殼中，其深度減少了72mm，包括接線端子。
在空間要求嚴格的應用中（例如在MCC中），這可以將整體尺寸減小到最小。
與其他ELR系列產品一樣，目前的ELR在輸入電路上也具有內置濾波器，因此幾乎不受外部失真的影響?？梢栽谄淝懊姘迳暇幊烫l電流（25mA÷25 A），跳閘時間延遲（0.02÷5秒）和復位的工作模式（自動或手動）。
ELR-7帶有一個微動開關，用于選擇終端繼電器的工作模式，該模式通常是在斷電，靜止（無跳閘狀態）或正常通電（故障保護）的情況下進行的。
除此之外，它還具有2個單獨的轉換開關和一個透明的用于保護的前蓋。其可拆卸的接線端子使安裝非常容易。
