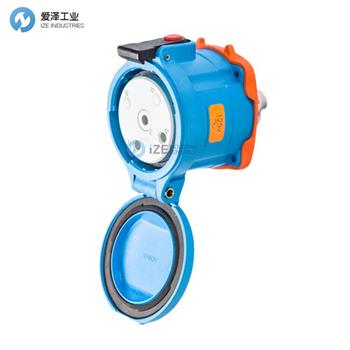

MELTRIC插座3364075-843技術參數
SPECIFICATIONS | |
Rated Current (A) | 60A |
Rated Voltage (V) | 125 VAC |
Horsepower Rating | 3HP |
Contact Configuration | 1P+N+G |
Auxiliary Contacts | NO AUX |
Ratings Information | SWITCH RATED |
BRANCH CIRCUIT DISCONNECT SWITCH | |
MOTOR CIRCUIT DISCONNECT SWITCH | |
Environmental Rating | Type 3R |
Short Circuit Rating | 100 KA - MAKE & WITHSTAND |
Impact Rating | IK08 |
Material | POLY |
Product Color | BLUE |
Minimum Operating Temperature | -40F |
Maximum Operating Temperature | 140F |
Wiring Capacity - Phase Contacts | 10 AWG – 2 AWG |
SCREW TERMINAL | |
Applicable Standards | UL 2682 |
Option(1) | PADLOCK PAWL |
Accessory Size | 4 |
MELTRIC插座DS60系列介紹
UL/CSA Ratings
Max Amperage & Voltage 60 A, 600 VAC
? Switch-Rating (AC Only) Branch Circuit & Motor Circuit Disconnect Switching
? Short Circuit Rating 100kA Close & Withstand Tested with RK1 current limiting fuses sized at 400% of the highest full load motor ampacity.
? Environmental Ratings Type 3R (Standard) Type 4X (Optional)
? Temperature Range Min -40°F/Max 140°F See pg 258 for temps below -15°F.
? Wiring Capacity Min 10 AWG Max 2 AWG Aux Contacts - Max 14 AWG Based on THHN wire sizes
? Certifications UL 2682, UL 1682, CSA 182.1
UL / CSA等級
最大電流和電壓60 A，600 VAC
?開關額定值（僅交流）分支電路和電機電路斷開開關
?短路額定值100kA閉合和耐受性用RK1限流熔斷器測試，其大小為最大滿載電機載流量的400％。
?環境額定值3R型（標準）4X型（可選）
?溫度范圍最低-40°F /最高140°F低于-15°F的溫度，請參閱第258頁。
?接線容量最小10 AWG最大2 AWG輔助觸點-最大14 AWG基于THHN電線尺寸
?認證UL 2682，UL 1682，CSA 182.1
MELTRIC插座DS60系列其他常用型號：
MELTRIC 33-64165
MELTRIC 37-68165
MELTRIC 33-64167
MELTRIC 37-68167
MELTRIC 33-64075
MELTRIC 33-68075
MELTRIC 33-64076
MELTRIC 33-68076
MELTRIC 33-64162
MELTRIC 33-68162
MELTRIC 33-64163
MELTRIC 33-68163
MELTRIC 33-64072
MELTRIC 33-68072
MELTRIC 33-64073
MELTRIC 33-68073
MELTRIC 33-64045
MELTRIC 33-68045
MELTRIC 33-64047
MELTRIC 37-68047
MELTRIC 33-64147
MELTRIC 33-68147
MELTRIC 37-64042
MELTRIC 33-68042
MELTRIC 33-64043
MELTRIC 33-68043
MELTRIC 33-64142
MELTRIC 33-68142
MELTRIC 33-64143
MELTRIC RECEPTACLE NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于MELTRIC插座3364075-843的疑問，請隨時致電我們，愛澤工業（021-31006702）。我們將盡全力解決您的問題。
If you have any question for MELTRIC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
