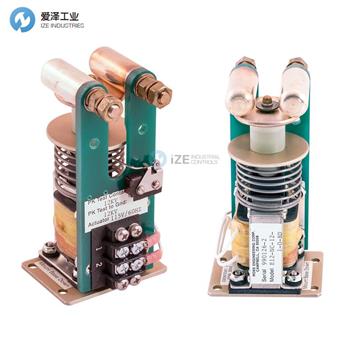

ROSS繼電器 E系列規格描述
RELAY | CONTACTFORM | 1MINUTE PK TEST | |
HV | INSULATION | ||
E12-NC | SPNC | 12KV | 12KV |
E12-NO | SPNO | 12KV | 12KV |
E12-DT | SPDT | 12KV | 12KV |
E15-NC | SPNC | 15KV | 15KV |
E15-NO | SPNO | 15KV | 15KV |
E15-DT | SPDT | 15KV | 15KV |
E25-NC | SPNC | 25KV | 25KV |
E25-NO | SPNO | 25KV | 25KV |
E25-DT | SPDT | 25KV | 25KV |
E30-DT-40 | SPDT | 30KV | 40KV |
E40-NC | SPNC | 40KV | 40KV |
E40-NO | SPNO | 40KV | 40KV |
E60-NC-80 | SPNC | 60KV | 80KV |
E60-NO-80 | SPNO | 60KV | 80KV |
ROSS繼電器 E系列規格描述
For transfer, safety grounding, or tap selection at 12kV to 60kV peak test in air. Most HV contacts have full insulation above ground. A higher insulation level to ground is optional. Most units are spring return, can mount in any position, or may also be used with gravity return by mounting in the proper position. E series units are also available with replaceable tungsten alloy contacts for high current capacitor discharge applications. High momentary and continuous current ratings are a natural result of large radiuses used to minimize corona. For holding or indicating one, two or more SPST, 11A, 250V AC auxiliary contacts are available on the E12, E15, E25, and E40; the E30 and E60 normally use 15A 250V AC and 1/2A, 125V DC auxiliary contacts. Other auxiliary contact ratings are available. Available up to 300kV PK.
用于空氣中12kV至60kV峰值測試的轉換，安全接地或抽頭選擇。大多數高壓觸頭在地面上具有完全絕緣。更高的接地絕緣等級是可選的。大多數裝置是彈簧復位的，可以安裝在任何位置，也可以通過安裝在適當?shù)奈恢门c重力復位一起使用。E系列單元還可提供可更換的鎢合金觸點，用于大電流電容器放電應用。高瞬時電流和連續電流額定值是用于最大程度減小電暈的大半徑的自然結果。E12，E15，E25和E40上可提供一個或兩個或多個SPST，11A，250V AC輔助觸點來保持或指示；E30和E60通常使用15A 250V AC和1 / 2A，125V DC輔助觸點。其他輔助觸點額定值也可用。可提供高達300kV的PK。
ROSS繼電器E系列其他常用型號：
ROSS E12-NC-12-1C-3-BD
ROSS E12-NC
ROSS E12-NO
ROSS E12-DT
ROSS E15-NC
ROSS E15-NO
ROSS E15-DT
ROSS E25-NC
ROSS E25-NO
ROSS E25-DT
ROSS E30-DT-40
ROSS E40-NC
ROSS E40-NO
ROSS E60-NC-80
ROSS E60-NO-80
ROSS valve NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于ROSS繼電器E12-NC-12-1C-3-BD的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for ROSS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
ROSS繼電器E系列E12-NC-12-1C-3-BD規格描述
