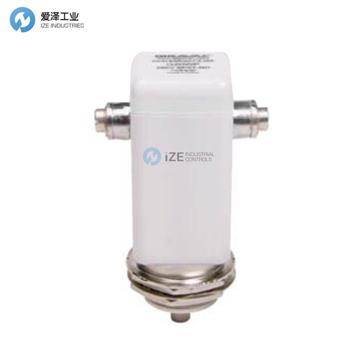

GIGAVAC繼電器G32產品參數
SPECIFICATIONS | ||
Contact Form | Y | |
Contact Arrangement | SPST-NC | |
Contact Material (moveable/stationary) | molybdenum/tungsten | |
Dielectric | Vacuum | |
Voltage, Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz) | kV Peak | 28 |
Voltage, Operating Max., Contacts & to Base (15 μA Leakage Max.) dc or 60 Hz | kV Peak | 25 |
Current, Load Switching | Contact Factory** | |
Current, Continuous Carry Max dc or 60 Hz | Amps | 45 |
Coil Hi-Pot (V RMS, 60 Hz) | V | 500 |
Capacitance | ||
Across Open Contacts | pF | 2.5 |
Contacts to Ground | pF | 2.5 |
Resistance, Contact Max @ 1A, 28 Vdc | ohms | 0.01 |
Operate Time | ms | 18 |
Release Time | ms | 20 |
Life, Mechanical | cycles | 2 million |
Weight, Nominal | g (oz) | 342 (12) |
Vibration, Operating, Sine (55-500 Hz Peak) | G’s | 10 |
Shock, Operating, 1/2 Sine11ms (Peak) | G’s | 30 |
Temperature Ambient Operating | °C | -55 to +125 |
GIGAVAC繼電器G32產品介紹
鎢觸點可改善負載切換性能
真空電介質允許接通和/或斷開負載切換
任何軸上的安裝選項
高壓螺紋連接意味著易于安裝
Tungsten contacts for better load switching performance
Vacuum dielectric allows for make and / or break load switching
Mounting options in any axis
Threaded HV connections means easy installation

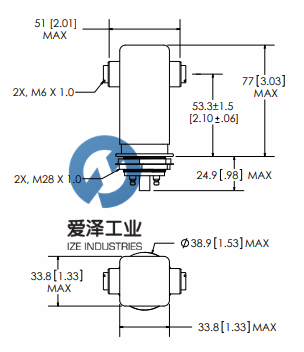

外觀尺寸
GIGAVAC繼電器G32系列其他常見型號：
GIGAVAC G18WP-115VDC
GIGAVAC G18WP-12VDC
GIGAVAC G20WP
GIGAVAC G20WP-115VDC
GIGAVAC G20WP-12VDC
GIGAVAC G22WP
GIGAVAC G22WP-115VDC
GIGAVAC G22WP-12VDC
GIGAVAC G23WF
GIGAVAC G23WF-12VDC
GIGAVAC G24WF
GIGAVAC G24WF-12VDC
GIGAVAC 625SF
GIGAVAC G25SF-115VDC
GIGAVAC G25SF-12VDC
GIGAVAC G25SP
GIGAVAC High Voltage Relays NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GIGAVAC繼電器G32WP的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GIGAVAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
GIGAVAC繼電器G32WP產品介紹及外觀尺寸
