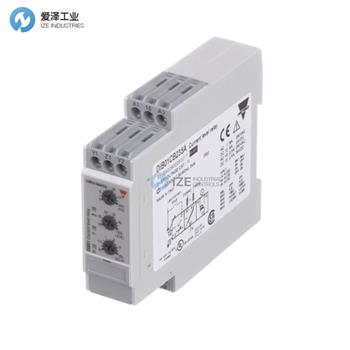

CARLO GAVAZZI繼電器DIB01系列產品參數
Specification | |
Power ON delay | 1 s ± 0.5 s or 6 s ± 0.5 s |
Reaction time | (input signal variation from -20% to +20% or from +20% to -20% of set value) |
Alarm ON delay | < 100 ms |
Alarm OFF delay | < 100 ms |
Accuracy | (15 min warm-up time) |
Temperature drift | ± 1000 ppm/°C |
Delay ON alarm | ± 10% on set value ± 50 ms |
Repeatability | ± 0.5% on full-scale |
Indication for | |
Power supply ON | LED, green |
Alarm ON | LED, red (flashing 2 Hz during delay time) |
Output relay ON | LED, yellow |
Environment | (EN 60529) |
Degree of protection | IP 20 |
Pollution degree | 3 (DIB01), 2 (PIB01) |
Operating temperature | -20 to 60°C, R.H. < 95% |
Storage temperature | -30 to 80°C, R.H. < 95% |
Housing | |
Dimensions | DIB01 22.5 x 80 x 99.5 mm |
Material | PA66 or Noryl |
Weight | Approx. 150 g |
Screw terminals | |
Tightening torque | Max. 0.5 Nm |
Product standard | EN 60255-6 |
Approvals | UL, CSA |
CE Marking | L.V. Directive 2006/95/EC |
EMC | |
Immunity | According to EN 60255-26 |
Emissions | According to EN 60255-26 |
CARLO GAVAZZI繼電器DIB01系列其他常見型號:
CARLO GAVAZZI DIB01CB2310AmA
CARLO GAVAZZI DIB01CB2310A0mA
CARLO GAVAZZI DIB01CB2310A00mA
CARLO GAVAZZI DIB01CB2310A
CARLO GAVAZZI DIB01CB2310A
CARLO GAVAZZI DIB01CD485mA
CARLO GAVAZZI DIB01CD4850mA
CARLO GAVAZZI DIB01CD48500mA
CARLO GAVAZZI DIB01CD485A
CARLO GAVAZZI DIB01CD4810A
CARLO GAVAZZI Relay NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年,定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣,液壓以及氣動解決方案的合作伙伴,我們利用我們的全球協作團隊,為客戶提供先進解決方案,市場知識以及相關增值服務來幫助優化客戶的工作效率,提高可靠性和安全性,致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CARLO GAVAZZI繼電器DIB01CB2310A的疑問,請隨時與我們溝通(021-31006702)。我們將盡全力解決您的問題。
If you have any question for CARLO GAVAZZI products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
CARLO GAVAZZI繼電器DIB01CB2310A產品參數
