TESCH繼電器M210系列產品參數
Specification | |
Voltage range | 0.8 to 1.1x nominal voltage |
Nominal frequency | 50 / 60Hz |
Nominal consumption | approx.1VA |
Mechanical life | 107 switching cycles |
Measuring accuracy | ± 1% |
Time accuracy | <± 0.5% under constant conditions |
Temperature influence | <0.01% / K |
Ambient temperature | -5 ° C to 60 ° C, no condensation |
Rated insulation voltage | 250 V. |
Creeping and air routes | Group III according to VDE0110 |
Test voltage | 2000 V according to VDE0435 |
Current measuring ranges | 0.03-5 AAC / DC; 30 mA resolution |
Voltage measuring ranges | 2-249 VAC / DC; 2 V resolution |
Degree of protection | terminals IP20, housing IP40 |
Hooks | Box clamp with wire protection |
Conductor cross section | finely stranded 2.5mm2 |
Switching capacity | AC1 250 V 4 A, DC1 30 V 3 A |
Weight | approx. 130 g |

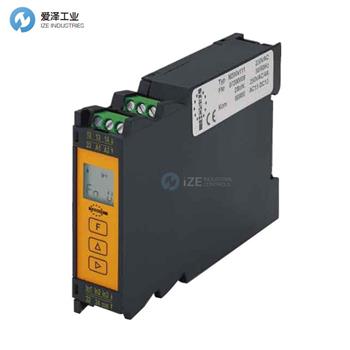

TESCH繼電器M210系列產品介紹
M210用于監視DC和AC網絡中的電壓或電流水平。
M210可以用作電壓或電流測量繼電器，測量范圍為0.2–249 V AC / DC以及50/500 mA和5A AC / DC，這使得M210成為具有廣泛應用的通用測量繼電器。
通過可編程的時間延遲抑制對短期測量值偏差的響應的其他可能性允許適應最多樣化的監視功能。
數字參數輸入和微處理器控制的處理過程可確?？焖伲_地設置所需的極限值。
The M210 is used to monitor voltage or current levels in DC and AC networks.
The optional use as a voltage or current measuring relay with measuring ranges from 0.2–249 V AC / DC as well as 50/500 mA and 5A AC / DC makes the M210 a universal measuring relay with a wide range of applications.
The additional possibility of suppressing the response to short-term measured value deviations via a programmable time delay allows adaptation to the most varied of monitoring functions.
The digital parameter input and the microprocessor-controlled processing ensure a quick and precise setting of the desired limit values.
TESCH繼電器M210系列其他常見型號：
TESCH 07200011
TESCH 07200022
TESCH 07200050
TESCH 07200012
TESCH 07200023
TESCH 07200051
TESCH 07200013
TESCH 07200024
TESCH 07200052
TESCH 07200068
TESCH 07200076
TESCH 07200075
