NAMCO行程開關EA170-31100產品參數
Specifications | |
Item Number | EA170-31100 |
Brand | Namco Controls |
Item Category | Limit Switches |
Subcategory | Industrial Limit Switches |
Series | Snap-Lock EA170 |
Actuator Type | Rotary |
Contacts | 2NO/2NC |
Direction of Operation | CW |
Contact Rating (125 VAC) | 20 Amps |
Contact Rating (125 VDC) | 5 Amps |
Contact Rating (250 VAC) | 15 Amps |
Contact Rating (250 VDC) | 1.5 Amps |
Contact Rating (480 VAC) | 10 Amps |
Contact Rating (600 VAC) | 5 Amps |
Connection Type | Screw Terminals |
Housing Material | Zinc |
Indicator | No |
NEMA Rating | 1;4;13 |
Picture No. | NAM_LIMI_EA170LMP |
H x W x D | 6.58 in x 2.87 in x 2.65 in |
Net Weight | 3 lb 8 oz |
Gross Weight | 3 lb 13 oz |

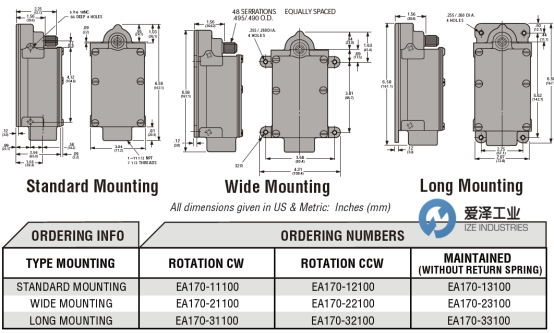

NAMCO行程開關EA170-31100尺寸和安裝

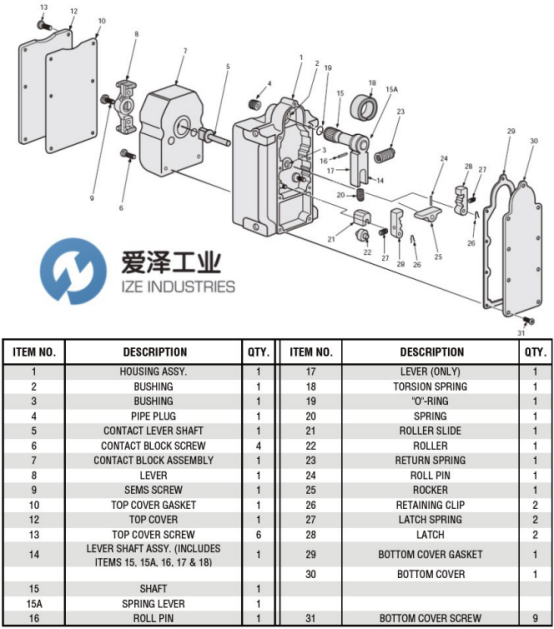

零件列表
NAMCO行程開關EA17系列其他常見型號：
NAMCO EA170-21100
NAMCO EA170-22300
NAMCO EA170-23100
NAMCO EA700-15800
NAMCO EA700-16000
NAMCO EA710-80100
NAMCO EA710-80128
NAMCO EA710-86100
NAMCO EA760-00455
NAMCO EA760-10000
NAMCO EA170-31100
NAMCO EA760-10001
NAMCO Limit Switches NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于NAMCO行程開關EA170-31100的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for NAMCO products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
