PROCONECT插座3PS2D3NE01技術參數
ELECTRICAL | |
Amperage | 250 A |
Voltage | 380-440 V |
Contact configuration | 3P+N+E |
CONSTRUCTION | |
Construction type | Outlet |
Material insulation body | Outlet |
Contact material | Outlet |
Material screw | Stainless steel |
Degree of protection (IP) | IP66 |
MECHANICAL | |
Nominal tightening torque | 10 Nm |
DIMENSIONS | |
Length | 158 mm |
Weight | 2.4 kg |
ENVIRONMENT | |
Operating temperature | -30…60 °C |
PROCONECT插座3PS2D3NE01產品介紹
3PS2D3NE01面板安裝式凹入插座設計用于額定電流250 A，電壓為380-440 V。它具有3P+N+E接觸組。單芯電線的最大截面積為120 mm2，絞線的最大截面積為95 mm2。IP66/67防護等級保證了設備的良好耐磨性。所有Proconect 3PS200工業插頭均符合IEC 60 309-1、IEC 60 947-3、IEC 60 529標準，以及Décret No. 88-1056規定。3PS2D3NE01插座的重量為2.4 kg。

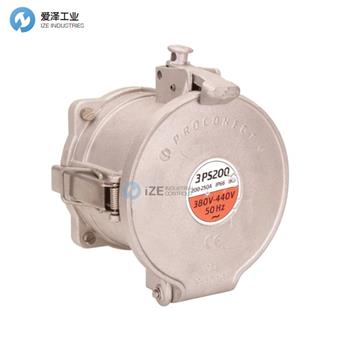

The Proconect 3PS2D3NE01 panel-mounted recessed socket is designed for a rated current of 250 A and a voltage of 380-440 V. It features a 3P+N+E contact group. The maximum cross-section of a single-core wire is 120 mm2, while the maximum cross-section of a stranded wire is 95 mm2. The IP66/67 protection rating ensures good wear resistance of the equipment. All Proconect 3PS200 industrial connectors comply with IEC 60 309-1, IEC 60 947-3, IEC 60 529 standards, and Décret No. 88-1056. The weight of the 3PS2D3NE01 socket is 2.4 kg.
