HUBBELL開關CS8365C產品參數
Specification | |
General | |
Application | Extra Heavy Duty Industrial |
Color | Black, White |
Cord Range | .830"-1.250"(21.08-31.75) |
Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
Item Type | Insulgrip Plug |
Material | Nylon |
Material - Mounting Hardware | Cord Mounted |
Number Of Poles | 3-Pole |
OEM Brand Name | Hubbell Wiring Device-Kellems |
Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current |
Type | Plugs |
UPC | 783585829128 |
Dimensions | |
Display Size | Standard Sized |
Height | 2.56 in |
Length | 6.37 in |
Weight | 1.25 lb |
Width | 2.56 in |
Electrical Ratings | |
Amperage Rating | 50 A |
Connectivity | Pressure Terminal Screws |
Current / Amperage Rating | 50 A |
Current Rating | 50 A |
Dielectric Strength | Withstands 2,000V minimum |
Phase | Three Phase |
Voltage Rating | 3-Phase Delta 250 VAC |
Voltage Rating Description | 3-Phase Delta 250 VAC |
Wattage | 12500 W |
Conductor Related | |
Cable Range | 0.830 - 1.250 in |
Cord Type | All Listed Portables |
Number Of Wires | 4-Wire |
Wire Size | #10 AWG to #6 AWG |
Certifications and Compliance | |
Industry Standard(s) | Certified to CSA C22.2 No.42 |
Logistics | |
Carton Quantity | 10 |
Pallet Quantity | 900 EA |
HUBBELL開關CS8365C產品介紹
鎖定裝置，Twist-Lock，工業，公插頭，50A，三相Delta 250V AC，3極4線接地，非NEMA，螺釘端子，黑色和白色
超強韌的尼龍外殼可提供更好的沖擊質量
不銹鋼護罩可保護觸點并防止錯配
重型兩件式外部線夾可最大程度減輕應力
帶六角插座螺紋塞的盒式端子，可在不損壞絞線的情況下對導體施加較高的夾緊壓力
熱塑性聚酯內部提供耐熱性和沖擊強度

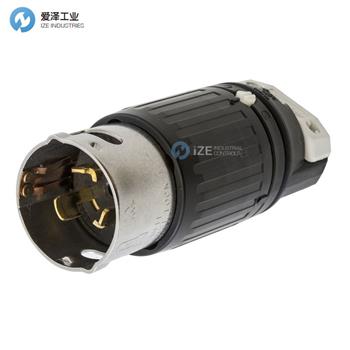

Locking Devices, Twist-Lock, Industrial, Male Plug, 50A, 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Black and White
Super tough nylon housing offers better impact qualities
Stainless steel shroud protects contacts and prevents mismating
Heavy duty two-piece external cord clamp provides maximum strain relief
Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
Thermoplastic polyester interior provides heat resistance and impact strength
HUBBELL開關CS8365C其他常見型號：
HUBBELL CS8365
HUBBELL CS8365C
HUBBELL CS8365CA10
HUBBELL CS8365L
HUBBELL CS8364L
HUBBELL CS8364CA34
HUBBELL CS8364CA10
HUBBELL CS8364CA05
HUBBELL CS8364C
HUBBELL CS8364
