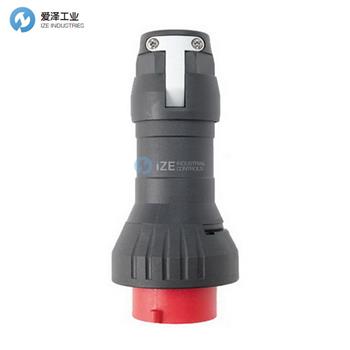

CEAG防爆插頭GHG41181系列產品參數
Specification | ||
Marking accd. to 2014/34/EU | D II 2 G Ex ed ib m IIC T6 | |
EC-Type Examination Certificate | PTB 00 ATEX 3117 | |
IECEx Certificate of Conformity | IECEx BKI 04.0003 | |
Marking accd. to IECEx | Ex e II T6, Ex e ib IIC T6, Ex ed IIC T6 or Ex ed ib IIC T6 | |
Permissible ambient temperature | –20 °C up to +40 °C | |
Rated voltage | 690 VAC | |
Rated current | 16 A | |
Rated making-/rated breaking capacity accd. EN 60947-5-1 | Ex41 AC-15: Ue 250 V / Ie 6 A Ue 500 V / Ie 4 A DC-13: Ue 24 V / Ie 6 A | Ex23 AC-15: Ue 230 V / Ie 6 A DC-13: Ue 24 V / Ie 2 A |
Connecting terminals | 2 x 2.5 mm2 | |
Protection class | I | |
Degree of protection accd. to EN 60529 | IP66 (standard) | |
Cable glands/Gland plates/Enclosure drilling | 1 x M25 cable gland or 1 x M20 thread with brass flange | |
Enclosure material | Polyamide | |
Enclosure colour | black | |
Dimensions (L x W x H) | 85 x 85 x 77.5 mm | |
Weight (empty) | 0.25 kg | |
CEAG防爆插頭GHG41系列產品介紹
可靠的過程控制
即使在最不利的條件下，CEAG控制站也可以可靠地使用和操作。外殼由滿足EN 60079要求的耐高溫沖擊熱塑性塑料組成，并具有很高的耐化學腐蝕性。 精心設計的低側壁設計可實現最佳電纜連接。
Reliable control of processes
Even under the most adverse conditions, CEAG control stations can be used and operated reliably. The enclosures consist of lowtemperature impact-resistant thermoplastic which fulfils the requirements of EN 60079 and provides a high resistance to chemicals. The well thought out design with low side walls allows optimum cable connection.
CEAG防爆插頭GHG41系列其他常見型號：
CEAG GHG4148100R0001
CEAG GHG4118100R0002
CEAG GHG4148100R0002
CEAG GHG4148100R0003
CEAG GHG4148100R0004
CEAG GHG4148200R0001
CEAG GHG4148200R0002
CEAG GHG4148200R0003
CEAG Ex-Control units NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CEAG防爆插頭GHG4118100R0002的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for CEAG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:jjxdch.cn.
CEAG防爆插頭GHG41系列GHG4118100R0002產品參數
