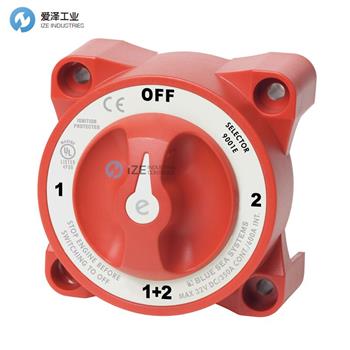

BLUE SEA SYSTEMS選擇電池開關E系列
Specifications | |
Switch Type | Selector 4 Position |
Color | Red |
Switch Positions | 4 |
Battery Combine | Yes |
Alternator Field Disconnect | No |
Maximum Voltage | 32V DC |
Terminal Stud Torque | 140 in-lb (15.82 Nm) |
Continuous Rating | 350A |
Intermittent Rating | 600A (5 min) |
Cranking Rating 30 sec | 1200A |
Battery Inputs | 2 |
Cable Clearance For 4/0 AWG Cables | 1.10in (27.94 mm) |
Cable Size to Meet Ratings | 4/0 AWG (120mm2) |
Mounting Holes | Accept 1/4" (M6) Screw |
Stud Material | Tinned Copper |
Terminal Stud Size | 3/8" - 16 (M10) |
Weight | 1.30lb (0.59 kg) |
BLUE SEA SYSTEMS選擇電池開關9001E產品介紹
將隔離的電池組切換到所有負載或?qū)㈦姵亟M組合到所有負載
斷前通斷設計允許在電池組之間切換而不會斷電
點火保護—可安全安裝在汽油動力船上
外殼設計允許表面或后面板安裝
Switches isolated battery banks to all loads or combines battery banks to all loads
Make-before-break contact design allows switching between battery banks without power interruption
Ignition protected—safe for installation aboard gasoline powered boats
Case design allows surface or rear panel mounting
BLUE SEA SYSTEMS選擇電池開關9001E其他常用型號：
BLUE SEA SYSTEMS 11001
BLUE SEA SYSTEMS 5510e
BLUE SEA SYSTEMS 5511e
BLUE SEA SYSTEMS 9001e
BLUE SEA SYSTEMS 9002e
BLUE SEA SYSTEMS 9003e
BLUE SEA SYSTEMS 9004e
BLUE SEA SYSTEMS Selector Battery Switch NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于BLUE SEA SYSTEMS選擇電池開關9001E的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for BLUE SEA SYSTEMS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
BLUE SEA SYSTEMS選擇電池開關9001E產品參數
