GIGAVAC繼電器G81系列產品參數
Contact & Relay Ratings | Units | G81 |
Contact Form | A | |
Contact Arrangement | SPST-NO | |
Voltage, Test Max., Contacts & to Base (15 μA Leakage Max., dc or 60Hz) | kV Peak | 11 |
Voltage, Operating Max., Contacts & to Base (15 μA Leakage Max.) - dc or 60 Hz | kV Peak | 10 |
Current, Continuous Carry Max - dc or 60 Hz | Amps | 5, 10*(1) |
Resistance, Contact Max @ 1A, 28 Vdc | ohms | 0.03 |
Operate Time | ms | 10 |
Release Time | ms | 10 |
Life, Mechanical | cycles | 2 million |
Weight, Nominal | g (oz) | 56 (2 oz) |
Vibration, Operating, Sine (55-500 Hz Peak) | G’s | 10 |
Shock, Operating, 1/2 Sine11ms (Peak) | G’s | 30 |
Temperature Ambient Operating | °C | -55 to +85 |

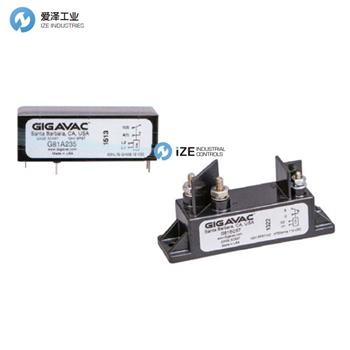

GIGAVAC繼電器G81A系列產品介紹及選型
Part Type: High Voltage Relay
Voltage Rating: 10kV
Contact Configuration: SPST
FORM: A
Weight: 57.00
Rated Voltage (KV Peak) DC or 60Hz: 10
Max Carry (Amps) DC or 60Hz: 5 or 10
Maximum Contact Resistane: 0.030
Maximum Operate Time: 10
Maximum Release Time: 10
Mech Life: 2 million
零件類型：高壓繼電器
額定電壓：10kV
觸點配置：SPST
形式：A
重量：57.00
額定電壓（KV 峰值） DC 或 60Hz：10
最大進位（安培）DC 或 60Hz：5 或 10
最大接觸電阻：0.030
最大操作時間：10
最長釋放時間：10
機甲生命：200萬

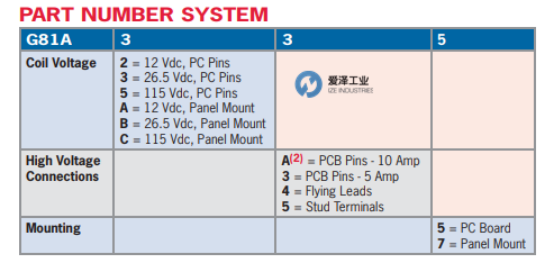

GIGAVAC繼電器G81A019其他常見型號：
GIGAVAC G81A335
GIGAVAC G81A3A5
GIGAVAC G81AB47
GIGAVAC G81A019
GIGAVAC G81A345
GIGAVAC G81B335
GIGAVAC G81B345
GIGAVAC G81B3A5
GIGAVAC G81BB47
GIGAVAC G81BB57
GIGAVAC G81C335
GIGAVAC G81C345
GIGAVAC High Voltage Relays NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GIGAVAC繼電器G81A019的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GIGAVAC products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: .
GIGAVAC繼電器G81A系列G81A019產品參數
