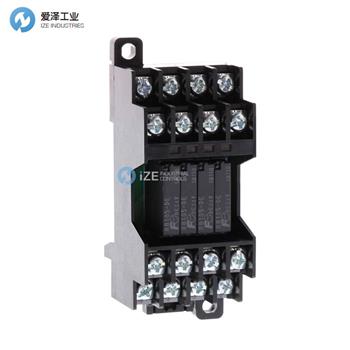

FUJI繼電器RS4N-DE產品參數
Specification | |
Item | Card relay |
Mounting | In-socket |
Hockey Puck Style | No |
Coil Voltage | 24 VDC 200mW |
Contact Configuration | SPST |
Contact Rating | 5A |
Finger-safe Design | No |
Includes | (4) relays, TY3 relay remover and (2) jumpers |
FUJI繼電器RS4N-DE產品介紹
卡繼電器，插裝式，24 VDC 200mW線圈電壓，SPST，5A觸點額定值。（4）繼電器，TY3繼電器拆卸器和（2）跳線。
一種非常緊湊，節省空間的端子模塊，包含四個或六個帶有一個常開觸點的24 VDC控制繼電器。RS系列薄型繼電器和端子模塊包括四個或六個插入式繼電器（RB105-DE型，帶一個常開觸點）和一個帶螺釘端子的端子模塊。該繼電器和端子模塊非常適合將電子控制設備（例如PLC或光電傳感器）與輸出設備連接。
特征：
1個常開/ SPST觸點，5 A額定熱電流，24 VDC線圈
隨附繼電器拆卸器（TY3）
緊湊的尺寸，寬34毫米x長69毫米，包括螺釘端子
輸入端子在模塊的上方，而輸出端子在模塊的下方，以進行電氣隔離
RB105型插入式繼電器和TP04型插座易于維護
內置線圈電涌抑制二極管和操作指示燈LED
該模塊可快速安裝在35 mm DIN導軌上
RS4N模塊包括兩個標準的附件跳線板，用于端子的通用布線
提供保護蓋（RZ4N-可選的端子護罩）
Card relay, in-socket mount, 24 VDC 200mW coil voltage, SPST, 5A contact rating. (4) relays, TY3 relay remover and (2) jumpers included.
A very compact, space-saving terminal module containing four or six 24 VDC control relays with one normally open contact. The RS series slim relays-and-terminal module consists of four or six plug-in relays (type RB105-DE, with one normally open contact) and a terminal module with screw terminals. This relays-and-terminal module is ideal for interfacing electronic control devices (such as PLCs or photoelectric sensors) with output devices.
Features:
1 normally open / SPST contact, 5 A rated thermal current, 24 VDC coil
Relay remover (TY3) included
Compact size of 34 mm wide x 69 mm long, including screw terminals
Input terminals are upper and output terminals are lower on the module for electrical separation
The type RB105 plug-in relays and type TP04 sockets make maintenance easy
Built-in coil surge-suppression diodes and operation indicator LEDs
The module is quickly-mountable on a 35 mm DIN rail
The RS4N module includes two standard accessory jumper plates for common wiring of terminals
A protective cover is available (RZ4N - optional terminal guard)
FUJI繼電器RS4N-DE其他常見型號：
FUJI RS4N-DE
FUJI RS6N-DE
FUJI RB105-DE
FUJI RZ4N
FUJI TY3
