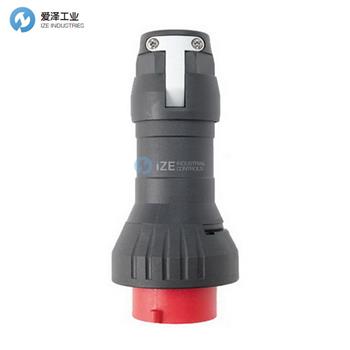

CEAG連接器GHG5117406R0001產品參數
Specification | |
Attribute | Value |
Type | Connector |
Plug/Socket | Plug |
Mounting Type | Cable Mount |
Pole Format | 3P+E |
Voltage Rating | 415 V |
Current Rating | 16A |
Colour | Red |
IP Rating | IP66 |
Housing Material | Glass Fibre Reinforced Nylon, Nylon |
Contact Material | Brass |
Contact Plating | Nickel |
Strain Relief | Yes |
Gender | Male |
Hazardous Area Certification | ATEX |
Hardware Material | Stainless Steel |
CEAG連接器GHG5117406R0001產品介紹
CEAG Crouse-Hinds增強型BS4343（IEC309）插頭，插座和耦合器專為危險區域環境設計。與廣泛使用的標準版本相比，增強型范圍具有機械上的優勢。
特點與優勢
專利的即插即用連接
防護等級達到IP66 / 67
適用于1區和2區應用，以及21區和22區除塵應用
CEAG標準危險區域插頭將與增強型插座和耦合器配對
CEAG增強型危險區域插頭無法與標準插座和連接器配合
插頭只能與增強型插座配合使用
批準書
BS4343; IEC309; Eex de IIC T6； ATEX; PTB ATEC 1039
CEAG Crouse-Hinds enhanced BS4343 (IEC309) plugs, sockets and couplers are designed specifically for hazardous area environments. The Enhanced ranges offer mechanical advantages over the popular and widely used Standard versions.
Features & Benefits
Patented plug and turn connections
Ingress protection to IP66/67
Suitable for Zone 1 and Zone 2 applications, and also Zone 21 and Zone 22 dust applications
CEAG Standard hazardous area plugs will mate with Enhanced sockets and couplers
CEAG Enhanced hazardous area plugs will NOT mate with standard sockets and couplers
Approvals
BS4343; IEC309; Eex de IIC T6; ATEX; PTB ATEC 1039
CEAG連接器GHG51系列其他常見型號：
CEAG GHG5117306R0001
CEAG GHG5117304R0001
CEAG GHG5113306R0001
CEAG GHG5117406R0001
CEAG GHG5117406R0001
CEAG GHG5114406R0001
