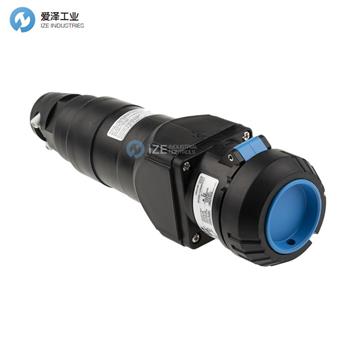

CEAG插座GHG5177407R0001技術規格
Technical data | |
Marking accd. to 2014/34/EU | II 3 G Ex nC IIC T6 |
EC-Type Examination Certificate | PTB 99 ATEX 1115 |
Permissible ambient temperature | –20 °C to +40 °C1) |
Rated voltage | 690 V (AC) |
Rated curent | up to 32 A |
Frequency | up to 400 Hz |
Rated making / Rated breaking capacity AC-3 accd. EN 60947-3 | Ue 690 V / Ie 32 A |
External back up fuse | without therm. protection: 35 A |
Protection class | I |
Degree of protection accd. to EN 60529 | IP66 |
Enclosure colour | black |
Cable entry/enclosure dilling | 1 x M40 cable gland, 1 x M40 plastic Ex-screw plug or |
Connecting terminals | 2 x 4 - 10 mm2 |
Enclosure material | glass-fibre reinforced polyester |
Cable entry | ? 12 - 28 mm |
Connecting terminals | 1 x 1.0 - 6 mm2 |
Enclosure material | Polyamide |
Cable entry | ? 12 - 28 mm |
Connecting terminals | 2 x 4 - 10 mm2 |
Enclosure material | Polyamide |
Connecting terminals | 2 x 4 - 10 mm2 |
Enclosure material | Polyamide |
CEAG插座GHG系列其他常用型號：
CEAG GHG 517 4409 R0001
CEAG GHG 517 4409 R3001
CEAG GHG 517 8409 R0001
CEAG GHG 517 3409 R0001
CEAG GHG 517 7409 R0001
CEAG GHG 517 4406 R0001
CEAG GHG 517 4406 R3001
CEAG GHG 517 8406 R0001
CEAG GHG 517 3406 R0001
CEAG GHG 517 7406 R0001
CEAG GHG 517 4407 R0001
CEAG GHG 517 4407 R3001
CEAG GHG 517 8407 R0001
CEAG GHG 517 3407 R0001
CEAG GHG 517 7407 R0001
CEAG GHG 517 4405 R0001
CEAG GHG 517 4405 R3001
CEAG GHG 517 8405 R0001
CEAG GHG 517 3405 R0001
CEAG GHG 517 7405 R0001
CEAG socket NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于CEAG插座GHG5177407R0001的疑問，請隨時與我們電聯（021-3100 6702），我們將盡全力解決您的問題。
If you have any question for CEAG products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
CEAG插座GHG5177407R0001技術參數
