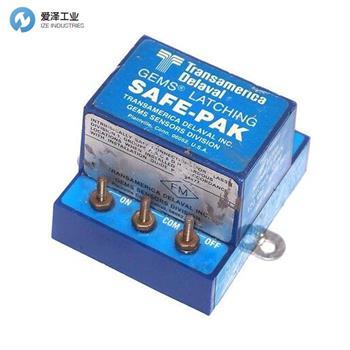

GEMS SENSORS繼電器25872產品參數
Specifications | |
Item Category: | Relays |
Subcategory: | Intrinsically Safe |
Series: | Safe-Pak |
Supply Voltage: | 100~135 VAC |
Output Rating: | 5 Amps |
Mounting: | Surface |
Hazardous Locations: | Class I, Div 1 & 2, Group A,B,C,D;Class II, Div 2, Group E,F,G |
Status Indicator: | No |
Input Sensitivity: | 400 KilOhms |
Approvals: | UL;CSA;MSHA |
H x W x D: | 2.25 in x 3.45 in x 3.05 in |
Net Weight: | 14.56 OZ |
Gross Weight: | 1 lb |
GEMS SENSORS繼電器25872產品介紹
不需要具有安裝要求的昂貴的防爆外殼。
無需清除。
SAFE-PAK：9 VDC下小于100微安的電流會驅動設備控制負載
120 VAC時為5A。電阻（高達100,000Ω）或短路傳感器操作設備。 120 VAC和240 VAC型號。
低靈敏度SAFE-PAK：在120 VAC時，傳感器閉合高達1000Q的電阻，可將電阻負載控制為5A。 120 VAC，常開模型。
Costly explosion-proof enclosures with their mounting requirements are unnecessary.
No purging is required.
SAFE-PAK: Less than 100 microamps at 9 VDC actuates the unit to control loads to
5A at 120 VAC. Resistive (up to 100,000Ω) or short-circuiting sensors operate the unit. 120 VAC and 240 VAC model.
Low Sensitivity SAFE-PAK: Sensor closures up to 1000Q resistance control resistive loads to 5A at 120 VAC. 120 VAC, N.O. model.
GEMS SENSORS繼電器SAFE-PAK系列其他常見型號：
GEMS SENSORS 25873
GEMS SENSORS 25872
GEMS SENSORS 64101
GEMS SENSORS 144600
GEMS SENSORS 54820
GEMS SENSORS 54825
GEMS SENSORS 61783
GEMS SENSORS relay NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向先進制造工業提供高端制造技術和設備。代理經營世界先進的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于GEMS SENSORS繼電器25872的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for GEMS SENSORS products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website: jjxdch.cn.
