AMETEK NCC繼電器TMM系列規格介紹
SPECIFICATIONS | |
TIME DELAY | |
Adjustment: | 3 digit push-button switch |
Range: | 50 ms to 999 minutes in 5 ranges |
Repeatability: | ±0.1%, ±.02 seconds over specified timing range |
ACCURACIES | |
Delay On Make: | ±1% of set time, plus fixed error of 80 ms max. (40 ms typical including power-on response time) |
Interval, One shot: | ±1% of set time, plus fixed error of 35 ms max. (10 ms typical) |
Delay On Break: | ±1% of set time, plus fixed error of 75 ms max. (10 ms typical) |
Repeat Cycle, On Time: | ±1% of set time, plus fixed error of 35 ms max. (10 ms typical) |
Repeat Cycle, Off Time: | ±1% of set time, minus error of 65 ms max. (10 ms typical) |
INPUT | |
Operating Voltage: | 24, 120 VAC, 12, 24, 48 VDC ±10% (DC models have reverse polarity protection. Unfiltered input voltage to them must be fullwave rectified) |
Power On Response: | .05 sec. max. |
Power Off Reset Time: | .15 sec. min. |
Start Switch Closure Time: | .020 sec. to initiate timing cycle; .050 sec. to reset delay during timing cycle |
Power Consumption: | 2 VA max. |
Frequency: | 50/60 Hz |
OUTPUT | |
Type: | Relay DPDT (2 form C) |
Rating: | 10 A max. resistive at 240 VAC; 100 mA at 5 VDC min. load current |
Life: | Mechanical: 10,000,000 operations |

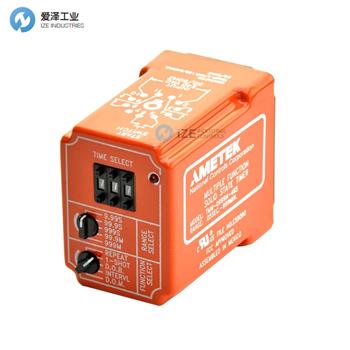

AMETEK NCC繼電器TMM系列產品介紹
TMM系列產品在一個插件包中提供可選擇的多種時間范圍和功能邏輯模式。編程是通過使用兩個5位旋轉開關來完成的。一個開關用于選擇五個時間范圍中的一個，另一個開關用于選擇五個操作邏輯模式中的一個。一個3位按鍵開關用于選擇計時周期所需的時間量。
The TMM Series offers selectable multiple time ranges and functional logic modes all in one plug-in package.
Programming is accomplished by using two 5-position rotary switches. One switch selects one of five time ranges. The other switch selects one of five operating logic modes. A 3-digit push-button switch selects the amount of time required for a Timing cycle.
AMETEK NCC繼電器其他常用型號：
AMETEK NCC TMM-0999M-465
AMETEK NCC TMM-0999M-466
AMETEK NCC TMM-0999M-462
AMETEK NCC TMM-0999M-464
AMETEK NCC TMM-0999M-467
AMETEK NCC TMM-0999M-461
AMETEK NCC Dust removal controller NEW + ORIGINAL+ ONE YEAR WARRANTY
