LJU手持式紅外遙控器FB-606技術參數
Technical Data | |
Basic Data | |
Type | FB-606 |
Shell | Shock-resistant plastic |
Color | Black |
Size Height x Width x Thickness | 147 mm x 68 mm x 27 mm |
Weight | 120 g |
Protection Type | IP 30 |
Indicator Light | 1 x Red LED |
Operation Key | 6 |
Power Supply | |
Power Supply | 9 V battery |
Average Power Consumption Transmission | Approximately 70 mA |
Quiescent Current | Approximately 2 μA |
Data Transfer | |
Operating Principle | Infrared signal control (same principle as TV remote control) |
Transfer Rate | Slow IR: 9600 bit/s |
Modulation Type 1 (Slow Infrared) | Emission frequency 125 kHz, bit encoding frequency sampling 9600 bit/s |
Modulation Type 2 (Fast Infrared) | IrDA (Infrared Data Association, global standard), bit infrared single pulse, pulse width 1 μs, rate 62500 bit/s |
Wavelength | 850 nm |
Radiation Power | 240 mW |
Effective Range | At least 6 m, typically 10 m |
Emission Angle | ± 20° |
LJU手持式紅外遙控器MU-705系列介紹介紹
FB-606 手持式紅外遙控器用于手動操作和遠程控制配備有相應軟件和紅外線接口的控制器。
FB-606 支持兩種紅外線（IR）傳輸速度。因此和 5xx, 6xx 和 7xx 系列的以及最新一代 8xx 臺
車控制器都兼容。
通過遙控器可以把控制器切換到手動操作模式（手控模式），以便通過不同的命令實現手動控
制臺車運行等操作。
這樣一來，如“Drive forwards/backwards 向前運動/向后運動”和“Hoist/Lower 升起/降下
”這樣的命令可以通過設定好的按鈕來實現。

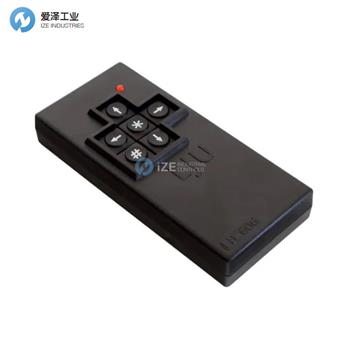

The FB-606 handheld infrared remote control is used for manual operation and remote control of controllers equipped with the corresponding software and infrared interface.
The FB-606 supports two infrared (IR) transmission speeds. It is therefore compatible with trolley controllers of the 5xx, 6xx and 7xx series as well as the latest generation 8xx.
The remote control can be used to switch the controller to manual operation mode (manual mode) in order to manually control the trolley movement via different commands.
In this way, commands such as "Drive forwards/backwards" and "Hoist/Lower" can be implemented via programmed buttons.
