CABUR電源XCSW241C技術參數
Series | Universal Power |
Code | XCSW241C |
Type | CSW241C |
INPUT TECHNICAL DATA | |
Input rated voltage | 1-2-3x 230-400-500 Vac |
Input voltage AC | 185…550 Vac |
Input voltage DC | 270…725 Vdc |
Frequency | 47…63 Hz |
Current consumption | 2 A (230 Vac) / 1 A (400 Vac) |
Inrush peak current | 20 A |
Power factor | > 0.65 |
External protection on AC line | MT: C-6 A / Fuse: T-6.3 A |
OUTPUT TECHNICAL DATA | |
Output voltage range | 24 Vdc ±1% |
Output adjustable range | 24…27.5 Vdc |
Continuous current | 10 A at 50°C |
Overload limiting | 15 A for >6 s |
Short circuit peak current | 38 A for 0.5 s |
Ripple @ nominal ratings | 100 mVpp |
Hold up time | 15 ms (230 Vac) / 100 ms (400 Vac) |
Status indication | LED "DC OK" / LED "Alarm" |
Alarm contact | dry contact, max. 1A @ 24 Vdc (Uout >21.6 Vdc) |
Parallel connection | possible |
Redundant parallel connection | possible with external ORing diode |
GENERAL TECHNICAL DATA | |
Efficiency | 91% (230 Vac) / 92% (400 Vac) |
Dissipated power | 24 W (230 Vac) / 21 W (400 Vac) |
Operating temperature range | –20…+60°C (derating -3 W >50°C) |
Input / output isolation | 3 KVac / 60 s (SELV output) |
Input / ground isolation | 2 kVac / 60 s |
Output / ground isolation | 0.5 kVac / 60 s |
Standard / approvals | EN 60950-1 |
EMC Standard | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
Overvoltage category / pollution degree | II / 2 |
Protection degree | IP 20 |
Connection terminal | 2.5 mm2 / 2.5 mm2 |
Housing material | aluminium |
Dimensions (LxHxD) | 55x130x115 mm |
Approximate weight | 1 kg |
Mounting information | vertical on a rail, 10 mm from adjacent components |
ACCESSORIES | |
Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
CABUR電源XCSW241C產品介紹
CSW241C 是一款電源產品，具有以下特點：
輸入電源: 1-2相電源輸入，電壓為230-400-500Vac，輸出為24Vdc，10A。
輸入相數: 支持單相、兩相和三相輸入。
保護功能: 短路保護、過載保護、輸入和輸出過壓保護。
過溫保護: 提供防止過溫的保護措施。
高可靠性和高性能應用: 適用于需要高度可靠性和性能的應用場合。
智能報警觸點: 當輸出電壓下降超過10%時，觸發信號報警。
高過載能力: 確保保護選擇性和重載啟動的可靠性。

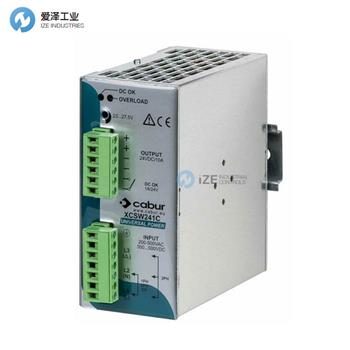

CSW241C 1-2-phase power supply input 230-400-500Vac / output 24Vdc 10A
Single phase, 2-phase and 3-phase input
Short circuit, overload, input and output overvoltage protections
Over temperature protection
Suitable for applications that require high reliability and performance
Smart alarm contact, signals when output voltage drops more than 10%
High overload capability to ensure the protections selectivity and start-up of heavy loads
