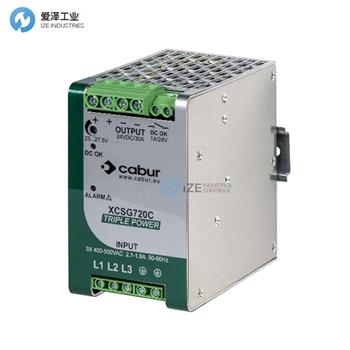

CABUR電源XCSG720C技術參數
Code | XCSG720C |
Type | CSG720C |
HS code | 85044083 |
INPUT TECHNICAL DATA | |
Input rated voltage | 3x 400–500 Vac |
Input voltage AC | 340…550 Vac |
Frequency | 47…63 Hz |
Current consumption | 1.4 A (400 Vac) / 1.1 A (500 Vac) |
Inrush peak current | 30 A |
Power factor | > 0.75 |
External protection on AC line | MT: C-10 A / Fuse: T 10 A |
OUTPUT TECHNICAL DATA | |
Output voltage range | 24 Vdc ±1% |
Output adjustable range | 24…28 Vdc |
Continuous current | 30 A at 50°C |
Overload limiting | 45 A for > 5 s |
Short circuit peak current | 60 A for 1.5 s |
Ripple @ nominal ratings | 100 mVpp |
Hold up time | 10 ms (400 Vac) / 15 ms (500 Vac) |
Status indication | LED "DC OK" / LED "Alarm" |
Alarm contact | dry contact, max. 1A |
Parallel connection | possible |
Redundant parallel connection | possible with external ORing diode |
GENERAL TECHNICAL DATA | |
Efficiency | 92% (400 Vac) / 92% (500 Vac) |
Dissipated power | 60 W (400 Vac) / 60 W (500 Vac) |
Operating temperature range | –20…+60°C |
Input / output isolation | 3 KVac / 60 s (SELV output) |
Input / ground isolation | 2 kVac / 60 s |
Output / ground isolation | 0.5 kVac / 60 s |
Standard / approvals | EN 60950-1 |
EMC Standard | EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4 |
Overvoltage category / pollution degree | II / 2 |
Protection degree | IP 20 |
Connection terminal | 4 mm2 / 4 mm2 |
Housing material | aluminium |
Dimensions (LxHxD) | 80x139x127 mm |
Approximate weight | 1.3 kg |
Mounting information | vertical on a rail, 10 mm from adjacent components |
ACCESSORIES | |
Mounting rail (IEC60715/TH35-7.5) | PR/3/AC, PR/3/AC/ZB, PR/3/AS, PR/3/AS/ZB |
Mounting rail (IEC60715/TH35-15) | PR/3/PP, PR/3/PP/ZB, PR/3/PA, PR/3/PA/ZB |
Marking tag | TAP207A , TAP128A , TAP178A , TAP209A |
CABUR電源XCSG720C產品介紹
CSG720C 三相電源輸入 400-500Vac / 輸出 24Vdc 30A
? 三相 400-500 Vac 輸入或兩相降額
? 短路、過載、輸入和輸出過壓保護
? 過溫保護
? 適用于需要高可靠性和性能的應用
? 智能報警觸點，當輸出電壓下降超過 10% 時發出信號
? 高過載能力，確保保護選擇性和重載啟動
CSG720C 3-phase power supply input 400-500Vac / output 24Vdc 30A
? 3-phase 400-500 Vac input or 2-phase with derating
? Short circuit, overload, input and output overvoltage protections
? Over temperature protection
? Suitable for applications that require high reliability and performance
? Smart alarm contact, signals when output voltage drops more than 10%
? High overload capability to ensure the protections selectivity and start-up of heavy loads
