KONECTY開關KEY-S系列技術參數
Technical Characteristics | |
Produced By | Konecty |
Model | Key-S |
Nominal Voltage | 600 V |
Assembly | Surface Mount |
Nominal Current | 20 A |
Insulation Class | 2,5 kV |
Maximum Number of Poles | 10 |
KONECTY開關KEY-S系列介紹
Konecty 測試開關是根據電力領域嚴格的安全標準開發的，旨在為工人和維護技術人員提供全面安全保障。這是進行電氣設備測試、校準和監控的簡單、快捷、可靠的方法，無需斷電，這意味著可以測試?yán)^電器和能量測量設備的電位和電流電路以及其他工業應用。
底座
采用具有出色絕緣性和機械強度的塑料材料注塑而成，能夠承受高溫而不會在結構上產生任何變形。
主蓋
采用具有高抗機械沖擊性的透明塑料材料注塑而成。蓋子可拆卸，并具有防偽密封裝置。其設計方式可保護連接端子，同時為操作員提供更大的靈活性，它已經提供帶有擴展保護片、不帶保護片以及為導體寬通道而切割的保護片的版本。它具有不可磨滅的標識，包含有關制造商、產品、型號、生產年份、電壓和電流的信息。
電壓和電流分段裝置
所有分段裝置均采用超硬特殊黃銅制成，具有彈簧效果和表面處理以保護組件。它們具有出色的機械強度和導電性。
電壓分段裝置由簡單的刀開關組成，可獨立激活電位電路。它們由絕緣屏障隔開，絕緣屏障在底部成型并具有加固高度，以避免任何電壓電弧的可能性。
分段電流裝置由刀開關組成，可在刀完全打開之前對電流變壓器的二次極進行短路。除了這些分段裝置外，每個電流電路還配有一個檢查橋，允許使用輔助設備而無需斷開導體。
中性極
這是一個由特殊超硬黃銅制成的鍵或連續板，用于連接開關的輸入和退出端子。
用于激活刀的鍵
注入高電阻絕緣塑料材料，以保護操作員免受接觸導電部件的風險。它們采用更符合人體工程學的設計，可以配置不同的顏色、電路標識符和機械聯鎖銷，以便同時打開兩個刀。
連接端子
這些端子由黃銅制成，表面經過處理，具有優異的電導性，從而可以牢固可靠地連接導體。

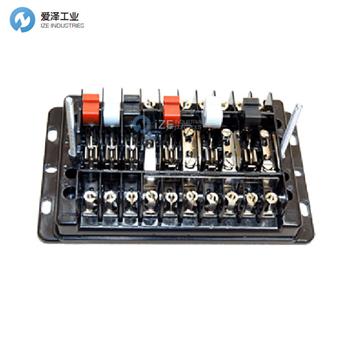

The Konecty Test Switches have been developed in line with the strictest standards for security in the electricity segment, and designed to make it possible to have total security for the workers and also the maintenance technicians. This is the simplest, quickest and most reliable method for conducting tests, calibrations and monitoring of electrical equipment, without any need for de-energisation of the systems, which means that it is possible to test potential and current circuits of relays and energy measurement devices, among other industrial applications.
Base
Injected in plastic materials with excellent insulation and mechanical resistance, being able to bear high temperatures without presenting any deformations in its structure.
Main lid
Injected in transparent plastic materials of high resistance against mechanical impacts. The lid is removable and has anti-fraud sealing devices. Designed in a way that protects the connection terminals and also provides more agility to the operator, it already comes in versions with extended protection tabs, without protection tabs, and also with protection tabs that have been cut for the wide passage of the conductors. It has indelible identification, containing information about the manufacturer, product, model, year of production, voltage and current.
Sectioned sets for voltage and current
All sectioning sets are made in extrahard special brass, with a spring effect and surface treatment for protection of the components. They have excellent mechanical resistance and also electrical conductibility.
The voltage sectioning units consist of simple Knife Switches and have independent activation for the potential circuits. They are separated by insulating barriers which are modelled at the base and have reinforced height, so as to avoid any possibility of voltage arcs.
The sectioned current sets consist of Knife Switches which allow the execution of short-circuits of the secondary poles of current transformers, before there is the full opening of the knives. Together with these sectioning devices, there is also a checking bridge for each current circuit, allowing the use of auxiliary equipment without the need to disconnect the conductors.
Neutral pole
This is a key or a continuous plate made in special extra-hard brass, connecting the input and exit terminals of the switch.
Keys for activation of the knives
Injected in insulating plastic materials of high resistance, to protect the operator from the risk of touching the conductive parts. They are designed with a design for greater ergonomic opening and can be configurable with different colours, circuit identifiers and mechanical interlocking pins for the opening of two knives at the same time.
Connecting terminals
These are produced in brass with surface treatment and excellent electric conductability, thereby allowing a firm and secure connection of the conductors.
KONECTY開關KEY-S系列其他常用型號：
KONECTY KEY-S 050 V.02
KONECTY KEY-S 050 V.03
KONECTY KEY-S 050 V.04
KONECTY KEY-S 050 V.05
KONECTY KEY-S 050 V.06
KONECTY KEY-S 050 V.07
KONECTY KEY-S 050 V.08
KONECTY KEY-S 050 V.09
KONECTY KEY-S 050 V.10
KONECTY KEY-S 050 V.11
KONECTY KEY-S-050 V.12
