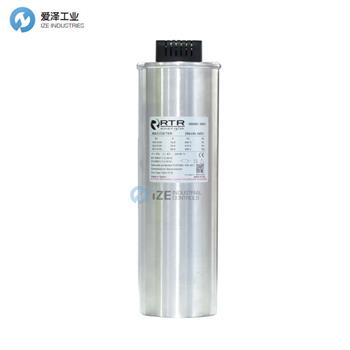

RTR ENERGIA電容MA/C/CE/TER系列技術參數
Technical Characteristics | |
Capacitance tolerance | 0.05 |
Frequency | 50 Hz (60 Hz upon request) |
Temperature range | -25?C +55 ?C (Class D) |
Dielectric losses | ≤0.2 W/KVAr |
Total losses | ≤0.40 W/KVAr* |
Over voltage | 1.10 x Un (8 h/day) |
Over current | 1.6xIn |
Max. THD in voltage | 0.02 |
Max. THD in current | 0.25 |
Discharge resistance | Incorporated |
Connection | Delta |
Voltage test between terminals | 2.15xUn 10s |
Voltage test between terminals and case | 5kV AC for 1min |
Inrush current | Up to 250 x In |
Protection | IP-20 |
Humidity | Max. 95% |
Life Expectancy | 130 000h |
Altitude | Max. 4000m.a.s.l. |
Mounting position | Universal |
Min. mounting distance between capacitors | 10mm |
RTR ENERGIA電容MA/C/CE/TER系列介紹
特性和實用性
? 三相電容器
? 三角形連接
? 內置放電電阻
? 無功功率因數校正
? 干式
? 連接器型端子
? 室內端子
安全性
? 過壓斷開系統
? 內部保險絲保護。
結構和材料
? 低損耗金屬化自修復聚丙烯薄膜，高密度、耐高溫、介電電阻更高 Volt/μ
? 聚氨酯自熄性樹脂 V0（阻燃），由 RTR Energia 根據 UL94 標準開發，認證編號為 20141031-E470994
? 鋁制外殼，底部固定件為 M12x16
放電時間
? 50V/60s
標準
? IEC 60831-1/2:2014
? UNE-EN 60831-1/2:2014
Characteristics and utility
? Three phase capacitor
? Delta connection
? Discharge resistors incorporated
? Reactive power factor correction
? Dry type
? Connector type terminal
? Indoor terminal
Safety
? Overpressure disconnection system
? Protection by internal fuses.
Construction and materials
? Low losses metallized self-healing polypropylene fi lm, high density, high temperature and greater dielectric resistance Volt/μ
? Polyurethane self-extinguishing resin V0 (Flame retardant), developed under standard UL94 by RTR Energia and with certifi cation number 20141031-E470994
? Aluminum case with bottom fixing M12x16
Discharge time
? 50V/ 60s
Standard
? IEC 60831-1/2:2014
? UNE-EN 60831-1/2:2014
RTR ENERGIA電容MA/C/CE/TER系列其他常用型號：
RTR ENERGIA TER-33.4/480
RTR ENERGIA C2300255TER0000
RTR ENERGIA C2300505TER0000
RTR ENERGIA C2300755TER0000
RTR ENERGIA C2301005TER0000
RTR ENERGIA C2301255TER0000
RTR ENERGIA C2301505TER0000
RTR ENERGIA C2302005TER0000
